PP Square Bottom Valve Cement Bag Making Machines, Block Bottom Cement Bag Sack Machines Ad Star Bag, Automatic Cement Bag Production Line, Square Bottom Bag
| US$450,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TF-600
Certification
ISO9001: 2000
Customized
Customized
Condition
New
After-sales Service
All Life
Width Bag
30-80cm
Suitable Package
Cement Chemial
Type Cement Bag
Block Bottom Valve
Transport Package
Wooden Case
Specification
CE
Trademark
Tianfeng
Origin
China
HS Code
84778000
Production Capacity
2 Set Per Month
Product Description
Product Description6.1 General
The machine adopts Hot Air Welding Technology and Magnetic Transport Technology, and is for making the block bottom valve bags from Polypropylene Woven Tubular Fabric with PP and PE layer coated. Product Parameters
6.2 Technical Data
| Bag size range: | |
| Bag width | : 350-600 mm |
| Bag length | : 450-910 mm |
| Bottom width | : 80-160 mm |
| Open bottom width | : 170-340 mm |
| Bottom center distance | : 350-750 mm |
| Tube cut-off length | : 530-1090 mm |
| Valve: | |
| Flat fabric width | : 170-330 mm |
| Cut-off length | : 80-200 mm |
| Bottom cap: | |
| Flat fabric width | : 75-175 mm |
| Cut-off length | : 230-480 mm |
| (Bottom width > 160mm is possible only for open-mouth bags.) | |
| Output (Production speed): | |
| For bottom width < 140mm | : Max. 110 pcs/min |
| For bottom width > 140mm | : Max. 95pcs/min |
| (Depending on material properties and bag dimensions.) | |
| Installed Power: Power (Excluding air compressor) Power supply | : 88Kw, : A.C., 3-phases, 380V, 50Hz, Neutral |
| Compressed air requirements: | |
| Pressure | : 6 Bar |
| Capacity required | : 120 m3/h |
| Cooling water requirements: | |
| Temperature | : Max. 18ºC |
| Ambient air requirements: | |
| Temperature | : 16ºC-40ºC |
| Relative humidity | : Approx. 60-95% |
| Space requirements: | |
| Overall dimension (L×W×H) | : 14000×7000×2280 mm |

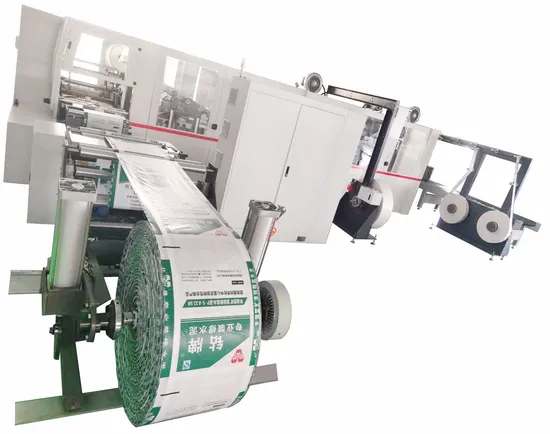

Detailed Photos
