1.2ton 3ton 8ton 12t New Crawler Knuckle Boom Mini Unic Telescopic 5-17m Lifting Cranes Electric Mini Lift Machine Portable Truck Spider Crane

Product Description

Product DescriptionIntroduction of 1.2ton 3ton 8ton 12t New Crawler Knuckle Boom Mini Unic Telescopic 5-17M Lifting Cranes Electric Mini Lift Machine Protable Track Spider Crane

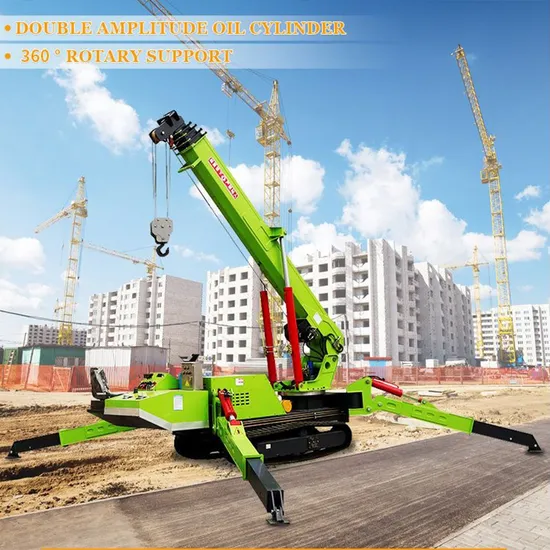

Features of Spider Crane:
1. Spider crane, suitable for occasions with small space.
2. The spider crane is a crane with full rotation, boom type and full hydraulic transmission.
3. The main boom is 4-5 sections, the main boom section adopts a U-shaped structure, and the single-stage telescopic oil cylinder and wire rope telescopic mechanism can realize the main boom synchronous expansion and contraction.
4. Double insurance of marking line and alarm for the extreme use of boom telescopic.
5. The cranes are equipped with radiators, which are more conducive to high temperature work in summer.
Spider cranes are small in size, heavy in load, and can be hoisted, which is unmatched by ordinary cranes. For example, in basements, workshops and other operating environments, ordinary machines cannot enter, and tower cranes on roofs, indoors, shopping malls or densely populated places There is no way to run, but the micro crawler spider crane can easily.zmwm21
Product Parameters
Parameters of 1.2ton 3ton 8ton 12t New Crawler Knuckle Boom Mini Unic Telescopic 5-17M Lifting Cranes Electric Mini Lift Machine Protable Track Spider Crane

Specification		1.2t	3t	5t	8 t	12t	14t
Maximum working radius		5m × 0.3t	7.8m × 0.2t	15m×0.2t	16m × 0.2t	22×0.6t	23×1.5t
Maximum ground lift		5.8mX0.8t	9.2mX0.8t	16mX0.8t	17mX0.9t	23.5mX0.9t	14.5mX2t
winch	Hook up speed	0-8m/min	0-8m/min	0-10m/min	_0- 10 m/min	0-10m/min	0-10m/min
	Wire Rope Specifications	Φ8mm × 35m	Φ8mm×45m	Φ 10mm × 80m	Φ10mm × 120m _	Φ12mm×80m	Φ12mm×80m
Telescopic device	Boom form(U-shaped high-strength manganese)	4 -section boom ,	5 -section boom ,	5-section lifting arm	5 -stage boom	6 stage boom	5-section boom
	Boom length/time	1.7 m- 5 m/2 2 sec	2.8 m- 8.2 m/2 2 sec	4m-15m	4.5m-16m	5m-22m	5.5m-23m
undulating device	Boom angle/time	0-7 5 °/13sec	0-7 5 °/13sec	0-75°/13sec	0-7 5 °/13sec	0-75°/13sec	0-75°/13sec
gyratory device	Rotation angle/speed	0-360° (continuous)/60sec
landing leg	Outrigger Action Form	Manual unscrewing + hydraulic automatic support (two legs) Oil pressure automatic
	Maximum extension (mm) Side*Front*Rear	3120x2950	4470x3940	5600*5560*5000	6400*6500*5400	7400*7000*6000	7400*7000*6000
walking device	way of walking	Hydraulic motor drive, two-speed
	Walking speed	0-2.5km/h	0-2.5km/h	0-5.5km/h	0-5.5 km /h	0-5.5km/h	0-5.5km/h
	Gradeability	20° (36%)	20° (36%)	20°(36%)	20° (36%)	20°(36%)	20°(36%)
engine	Type	Electric / Diesel /gasoline
	Brand	Chinese Brand/ Japan Brand / American Brand / EPA / Euro V
	Start method	Electric start	Electric start	Electric start	Electric start	Electric start	Electric start
	Startup performance	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C	-5°C~40°C
	fuel/volume	Gasoline / 8 L	Diesel / 8 L	Diesel / 45L	Diesel / 45 L	Diesel /55L	Diesel/60L
	battery capacity	12v 45AH	12v 45AH	24v 45AH	24v 45AH	24v 45AH	24 v 45 AH
	Fuel consumption	274g/kW-h	274g/kW-h	230g/kW-h	230 g/kW-h	230g/kW-h	230g/kW-h
operating system	Type of operation (jib/outrigger),	Manual travel Manual operation, manual walking + remote control (optional)
The standard configuration		Diesel engine and electric motor
Vehicle size L*W*H mm		2260*600*1470mm	3450*950*1700mm	4950*1560* 2235mm	5010*1600*2200mm	6500*2000*1700mm	6050*2000*2300mn
Machine weight		1200kg	2400kg	6300kg	7150kg	11.5 ton	15ton

Detailed PhotosPhotos of 1.2Ton 3Ton 8Ton New Crawler Cranes Electric Mini Lifiting Machine Spider CraneOur Advantages
