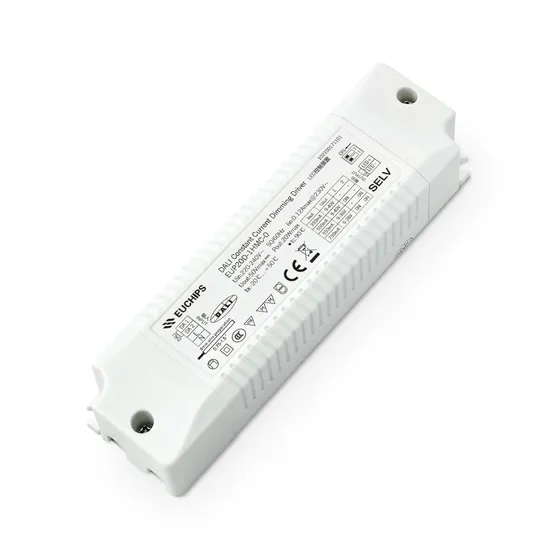

Euchips 20W Dali Constant Current Dimmable LED Driver for LED Lighting
| US$5.50-19.80 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
EUP20D-1HMC
Circuit Structure
Conventional Step-down Transformer
Certification
TUV, CE, RoHS, CCC, CE, RoHS, CCC, EMC
Modulation System
PWM
In-Out
Booster Type
Power Supply Voltage
AC85-265
Brand
Euchips Eudimming
Remote Control
Without Remote Control
Load Type
Direct
Lighting Variation
Sectional
Switch Device
Active
Application
Hotel, Home Lighting
Power Source
AC
Control Mode
PWM Dimmer
Type
Consant Current
IP Rate
IP20
Frequency
50/60Hz
Input Voltage
220VAC-240VAC
Power Factor
0.95@230VAC, Full Load
Warranty Condition
5 Years
Transport Package
Carton Packaging
Specification
110*30*23MM
Trademark
EUCHIPS
Origin
Suzhou, China
HS Code
8504401400
Production Capacity
50000 Per Year
Product Description
Product Description 20W Constant Current DALI-2 Driver EUP20D-1HMCEUP20D-1HMC is a 20W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP20D-1HMC can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 ed2.0
3. Support Touch-DIM function
4. High efficiency up to 85%
5. Built-in active PFC function
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over Voltage
8. Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP20D-1HMC | ||
| Input | Efficiency | 85%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load) | <10%@230VAC, Full load | ||
| AC Current(max) | 0.12Amax@230VAC | ||
| Inrush Current(max) | Cold start,20A@230VAC 100us | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) | 350mA/9-42VDC/14.7W 400mA/9-42VDC/16.8W 450mA/9-42VDC/18.9W 500mA/9-40VDC/20W 550mA/9-36VDC/19.8W 600mA/9-33VDC/19.8W 650mA/9-30VDC/19.5W 700mA/9-28VDC/19.6W | |
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±7% | ||
| Standby Power | <0.5W | ||
| No load output voltage | 55VDC Max | ||
| Function | Dimming Mode | DALI | |
| Dimming Range | 0.3%-100% | ||
| Protection | Short circuit | after fault removed Close output ,the output current recovers automatically | |
| Over Load | Hiccup , recovers after fault condition is removed | ||
| Over Voltage | Hiccup , recovers after fault condition is removed | ||
| Safety&EMC | Surge | L-N:1kV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| Safety Standards | EN61347, GB19510 | ||
| EMC Eission | EN55015, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547 | ||
| Others | Working Temp. | -20ºC~50ºC | |
| Storage Temp.; Humidity | -40ºC~85ºC, 20-90%RH | ||
| Tc | 70ºC | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:70ºC | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >25,000 times | ||
| Packing Size | Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) | ||
| Dimension | 135*36*25mm(L*W*H) | ||
FAQ A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Lead time?
Existing items: Within 1 day after payment received.
New items:About 4-6 weeks after payment received.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging
