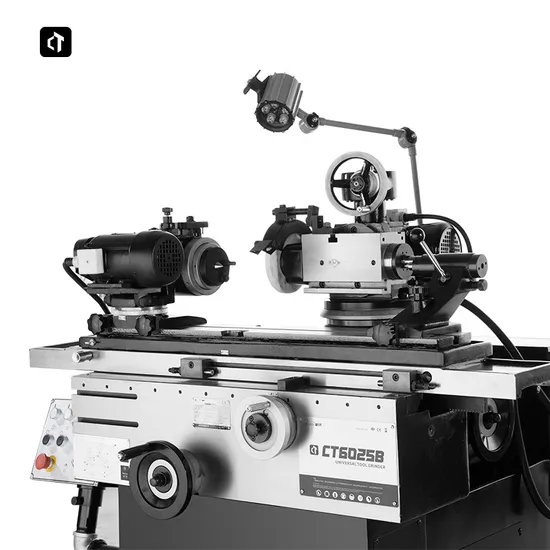

CT6025b High-Precision Universal Grinder Tool for Surface Grinding, External and Internal Cylindrical Grinding

Product Description

MODEL	CT6025B
Maximum rotation diameter of top upper table	250mm
The maximum length of the workpiece between the left and right tailstock tips	650mm
Distance between tool grinding stand and tailstock tip	545mm
Maximum size of the grindable surface (length × width)	350×100mm
The maximum length of the outer circle that can be ground	270mm
Maximum weight supported between tips	12kg
Workbench surface dimensions length × width	900×140mm
Maximum stroke	400mm
Maximum rotation angle	±45°
Running speed	Manual
Wheel stand
Lateral movement	230mm
Vertical movement amount	250mm
Maximum/minimum distance from grinding wheel centerline to worktable	298/48mm
Motorized lifting speed	280mm/min
Rotation angle in horizontal plane	360°
Rotation angle in vertical plane	±15°
Grinding wheel spindle speed	2700 4000 5500 r/min(50HZ)
	3100 4600 6300 r/min(60HZ)
Universal chuck
Spindle speed r/min	170,270(50HZ) 195,310(60HZ)
Spindle taper	ISO .NO.50/M.T.NO.2-5
Tailstock taper	MT2
Power
Grinding wheel frame motor	1100W 2780r/min
Column lifting motor	90W 1400r/min
Hydraulic pump motor	370W 1400r/min
Universal chuck motor	80W 700r/min
Grinding wheel size (outer diameter × width × inner diameter)
Dish-shaped	D1 150×16×32mm
Bowl-shaped	BW 125×45×32mm
	BW 75×32×20mm
Cup-shaped	B1 25×63×32mm
Flat shape	P1 50×16×32mm
Overall dimensions (length × width × height)	1340×1320×1320mm
Net weight (including random accessories)	1100kg

Features
1. Both HSS cutters and Carbide cutters are available for sharpening.
2. Precision linear guideway makes the table stable and smoothly operated.
3. The motor could rotate 360º in the horizontal plane allowing easy access to the workpiece.
4. The machines base is made of cast steel construction resulting in high stability during operation.
5. The sliding table is mounted on precise linear ball rails that provide smooth and accurate movement.
6. The grinding head support is made up of double rotating bracket, which allows the head to rotate in both the horizontal and vertical plane.
7. The column structure enables it to lower and raise the grinding wheel.
8. The motorized workhead allows for small cylindrical grinding between centers or if required single ended work mounted in the chuck.
Size/Weight
The appearance/package size of the product is measured manually, and there is a small error. It is normal, and the specific object shall prevail. CT6025B Machine size 1340×1320×1320mm
CT6025B Machine weight 1100kg
Hydraulic forklifts or cranes are recommended for handling
