24000BTU/18000BTU//2HP/3HP Split Wall Window Mounted WiFi Smart Acdc Inverter Solar Panel Energy Powered Air Conditioner with R410A R32 for House/Home

Product Description

24000BTU/18000BTU//2HP/3HP Split Wall Window Mounted Wifi Smart ACDC inverter Solar Panel Energy Powered Air Conditioner with R410 R32 for House/Home

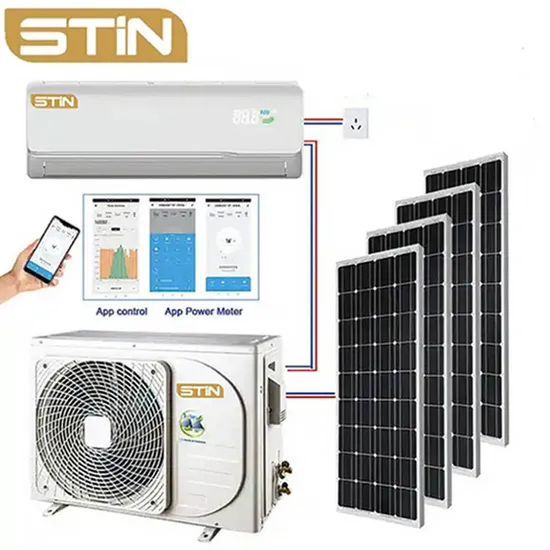

Product Description AC/DC Hybrid Solar Air Conditioner An AC/DC solar air conditioner is an air conditioning system powered by DC (direct current) and AC (alternating current) electricity. It uses solar panels to generate DC power from sunlight and can switch between DC and AC power sources as needed. The solar panels produce DC power, which is transferred to the air conditioner unit through DC wiring. The DC power is used to operate the compressor, fan, and other electronic components. An inverter is then used to turn the DC power into AC power, allowing the unit to function as a traditional air conditioner. The system can switch between DC and AC power depending on the availability of solar power, ensuring that the air conditioner continues to operate regardless of the power source. The AC/DC solar air conditioner system is ideal for off-grid locations as it can function without grid power and can deliver significant energy savings in areas with high electricity rates. It is also an eco-friendly solution because it generates renewable energy, reducing the carbon footprint.
Characters:
Hybrid ACDC air conditioner can work without battery, it works with unstable solar panel DC power at day time.
At night or rainy days it automatically get grid AC power. It's mainly used for school classroom, hospital, restaurant, shops, office…
Solar air conditioner DC specification

Model	Capacity	Solar DC voltage	DC Current	Input Power request
ACDCBLW-12K WiFi	12000btu 1.5HP 1Ton	80V-380V	</=10A	940(190-1270) W
ACDCBLW-18K WiFi	18000btu 2.0Hp 1.5Ton	80V-380V	</=10A	1400(220-2100) W
ACDCBLW-24K WiFi	24000btu 3.0Hp 2.0Ton	80V-380V	</=10A	1790(300-3200) W

Using App control air conditioner anywhere you are through WIFI. Checking power saving data and power using by Hour/Day/Month/Year.
Product Parameters
Full Specification of air conditioner

Model	Unit		ACDCBLW-12K	ACDCBLW-18K	ACDCBLW-24K
Climate Type	Tropical</= 58ºC		T3/T1	T3/T1	T3/T1
Application area		m2	12-20	20-30	30-42
Power Supply	AC Power	Ph-V-Hz	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ	1Ph 208V-240V/50-60HZ
	DC Power (PV in Series)	V	80-380V	80-380V	80-380V
	DC Power Current	A	</=10A	</=10A	</=10A
Adviced Solar Panel		Pcs	(3-4)*330W in series	(3-6)*330W in series	(3-8)*330W in series
Rated Cooling	Capacity(T1)	W	3510(900-3900)	5070(1200-6000)	6450(1800-7900)
		BTU	12000(3000-13300)	17300(4100-20400)	22000(6100-27000)
	Power input(T1)	W	940(190-1270)	1400(220-2100)	1790(300-3200)
	Capacity(T3)	W	2910	4290	5130
		BTU	9900	14700	17500
	Power input(T3)	W	1050	1630	1940
Rated Heating	Capacity	W	4100(1000-4500)	6100(1200-6800)	7800(1800-9100)
		BTU	14000(3000-15300)	20800(4100-23000)	26600(6100-31000)
	Power input	W	1170(190-1700)	1770(220-2500)	2290(300-3500)
T1 EER (W/W)/ (BTU/W)		/	3.75/12.75	3.60/12.35	3.60/12.30
T3 EER (W/W)/ (BTU/W)		/	2.75/9.45	2.65/9.00	2.65/9.00
COP (W/W)/ (BTU/W)		/	3.50/11.95	3.45/11.75	3.40/11.60
Dehumidification capacity		L/h	1.3	1.7	2.5
Compressor	Model	/	WHP04200	WHP05600	5RD198
	Type	/	2xRotary Inverter	2xRotary Inverter	2xRotary Inverter
	Brand	/	Highly	Highly	Panasoni c
Indoor fan motor	Model		BLDC-15W	BLDC-45W	BLDC-45W
	Speed(Turbo/Hi/Mi/Lo)	r/min	1300/1200/1100/950	1050/950/850/750	1350/1250/1150/1000
Indoor air flow(Turbo/Hi/Mi/Lo)		m3/h	540/485/435/350	980/880/740/620	1290/1180/1070/900
Indoor noise level (Turbo)		dB(A)	≤42.5	≤46	≤50
Indoor unit	Dimension(W×H×D)	mm	840×205×295	1080×330×237	1080×330×237
	Packing (W×H×D)	mm	920×290×360	1140×300×382	1140×300×382
	Net weight/Gross weight	Kg	9.0/12.5	15.0/18.5	15.0/18.5
Outdoor fan motor	Model	/	BLDC-40W	BLDC-55W	BLDC-75W
	Speed	r/min	880	880	850
Outdoor air flow		m3/h	2100	2200	3300
Outdoor noise level		dB(A)	≤52	≤55	≤58
Outdoor unit	Dimension(W×H×D)	mm	802×564×323	802×564×323	900×700×337
	Packing (W×H×D)	mm	910×622×405	910×622×405	1006×755×418
	Net/Gross weight	Kg	33.5/37.5	37/42.0	50/54.5
Refrigerant type		/	R410A	R410A	R410A
Max Design pressure		MPa	4.3/1.5	4.3/1.5	4.3/1.5
Refrigerant copper pipe	Gas side/Liquid side (inch)	inch	3/8 1/4	1/2 1/4	1/2 1/4
	Max. refrigerant pipe length	m	15	20	25
	Max. difference in level	m	8	10	10
Drain pipe size		mm	16	16	16
Refrigerant connction copper pipe length		m	3	4	4
Connection wire length		m	4	5	5
Electronic Expansion Valve		/	Yes	Yes	Yes
Loading QTY 40" Hq/ 20"GP		Sets	200/85	160/75	115/50

Detailed Photos
Accessories
Workshop and Delivery Packing
Company Profile
ABOUT COMPANY

SHANGHAI STIN ENERGY TECHNOLOGY CO., LTD. was established as one branch of STIN HOLDINGS and targeted on being a Total Solution Company which is based on clean sustainable solar energy. We are focusing on product development, production, system integration, sales and service. Products include solar panel, Turn-key completed on-grid, off grid and hybrid solar systems, solar inverter, solar air conditioner,solar charge controller and lithium-ion battery, etc. We aim to develop, manufacture, and deliver the most reliable and cost-effective solar energy solutions to every corner in the world.We have excellent cooperation team, committed to product design and development, quality control and inspection and company operation.
