Factory Sell 15000W/20000W/30000W Metal Sheet Laser Cutting Machine 30mm 35mm Ms Ss Al Hsg CNC Fiber Laser Cutting Machine Price

Product Description

Product Description

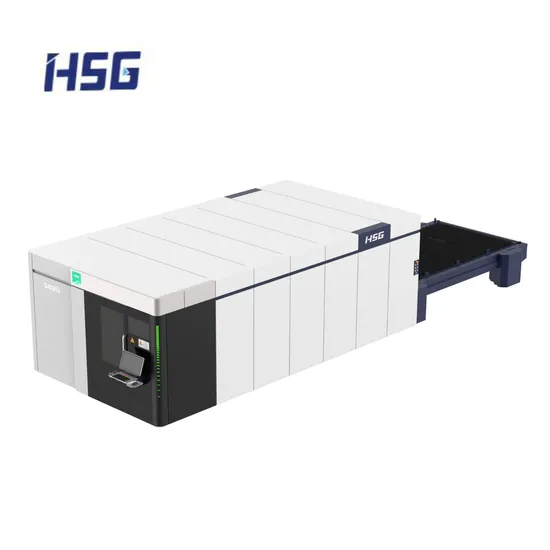

Product Type: GV Series Ultra-high-power Laser Cutting Machine 15000W - 30000W
The point of GV
1.Gravity Surround Full-hollow Machine Bed
Innovative gravity surround full-hollow machine bed specialized for ultra-high-power machine, no square tube in the middle, no baffle in the cutting area, bed free from high-temperature roasting, no deformation, more durable.
2.Innovative Anti-asynchronous Hydraulic Lifting
Patented innovative guidance system can make workbench lift or fall stably even when four cylinders are out-sync, and bring them into step intelligently. Workbench in cutting area will always at the same level, ensuring the high cutting accuracy at high speed.
3.Patented Ventilation System
This patented structure is externally equipped with fast-cooling air duct, thus, high-temperature air will flow out from the outside, without any heat on machine bed, ensuring lasting durability; The ventilation system, with right and left zone, is generally controlled by butterfly valve and has intensive suction, hence, which makes smoke exhaust smooth under the support of large-caliber fast-cooling air duct on both sides; Patented butterfly valve damper performs well in airtightness and environmental protection, without any noise while opening and closing.
4.Low-pressure Air Cutting Technology
The cutting speed of air is 3 times faster than that of oxygen and has high production efficiency. Low-pressure cutting, not like high-pressure cutting that requires high-pressure high-energy air compressor, can save 50% energy consumption and greatly lower using costs.
Product Parameters

Technical Parameter	G4020V	G6025V	G8025V
Power	15000W~30000W	15000W~30000W	15000W~30000W
Processing Format (L*W)	4000mm*2000mm	6000mm*2500mm	8000mm*2500mm
X/Y-axis Positioning Accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y Axis Repositioning Accuracy	±0.02mm	±0.02mm	±0.02mm
Max. No-load Speed	169m/min	169m/min	169m/min
Max. Acceleration	1.5G	1.5G	1.5G
Overall Dimensions (L*W*H)	11500×3950×2400mm	15500×4500×2400mm	19500×4500×2400mm

Cutting Sample
Certifications

Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.

Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.

FAQ
1. who are we? We are based in Guangdong, China, start from 2009,sell to Domestic Market(78.70%),South Asia(3.66%),Eastern Europe(3.05%),Southeast Asia(2.99%),Western Europe(2.44%),Mid East(2.20%),Eastern Asia(1.83%),South America(1.46%),Oceania(1.19%),North America(0.73%),Africa(0.71%),Southern Europe(0.61%),Northern Europe(0.43%). There are total about 1000+ people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Laser Cutting Machine,Sheet & Tube Laser Cutting Machine,Tube Metal Laser Cutting machine,Laser Welding Machine,Bending machine 4. why should you buy from us not from other suppliers? Relying on our software development advantages and several years'steady development,we have developed laser machines of eight series and more than 60 models and have reached year's production capacity of more than 2000 sets. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Portuguese,German,French,Russian,Korean
