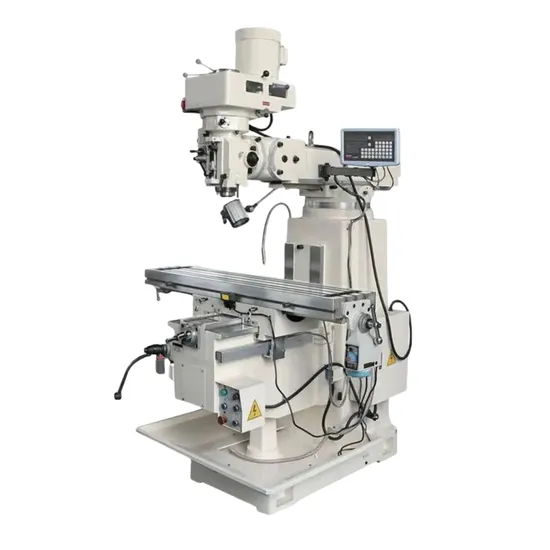

Hot Sale Metal Milling Machine Dro Universal Milling Universal Turret Milling Machine Price

Product Description

Product Description
Double 550 swallowtail guideway is adopted on both Y and Z-axis, so it is easy to adjust. The guideway on saddle is lined with TF wearable material.
1. 550 swallowtail guildeway is adopted on Z-axis, and rectangular guideway on Y-axis.
2. Adopted strengthen rib on both sides of the column, that makes the machine rigidly and beautiful.
1. Fixed structure is used to conned the mill head without ram, which makes the cut intensity well.
2. Rectangular guideway on Y, Z-axis makes the machine stable and rigidly. Guideway with TF wearable material.
1. Rectangular guideway on Y, Z-axes is featured a good rigidity and stability.
2. The guideway on saddle is lined with TF wearable material.
1. Rectangular guideway on Y, Z-axes makes the machine stably and rigidly.
2. The guideway on saddle is lined with TF wearable material.
Rectangular guideway is adopted both on Y, Z-axes. The guideway on saddle is lined with TF wearable material, which makes the machine stably and rigidly,also makes it beautiful and easy to operate.
Standard accessories
draw bar,toolbox and tool,operating manual,working lamp,electrical box

3 Axis DRO


X/Y Fast feeder ( Gear type)

Z axis Motor control

52pcs clamping kits

Convergent cabinet

5HP Inverter control milling head ( Delta Inverter , stepless speed head )

Model		TM6323A
Table size		230x1067(9"x42") 230x1246(9"x49")
Long travel		650 840
Cross travel		305
Vertical travel		400
T-slot No. and size		3 x 16
Ram travel		312
Distance from spindle nose to table surface		0-415
Spindle hole taper		(Standard): R8 (Optional): ISO 30/ISO 40
Spindle travel		127
Spindle speed		(standard): (shift gradel) 50Hz 65-4500 60Hz: 80-5440
		(optional): (variable) 65-4500
Auto quill feed		(three steps): 0.04(0.0015"/0.08(0.003")/0.15(0.006") mm/revolution
Spindle motor		2.25Kw/3HP
Head swivel		90°
Head tilting		45°
Dimension of	one miller per case	1400x1476x2030
package	two miller per case	1450x1570x2080
	three miller per case	1450x2180x2080
weight (kg)		1100
