Frame Type Palte Vulcanizing Press Machine

Product Description

Frame Type Palte Vulcanizing Press Machine
Product Description The machine is main device which is used in pressing and molding various rubber model goods and non model goods, it also can be used in pressing various heat solidify plastic and sparkling rubber and plastic goods. It has independent drive framework and electrical system, adopts button to centralized control. Working pressure and heating temperature can be adjusted in the range.
1. It has the function of automatic pressure retrieve and when oil pum stops overtime, oil way configure is more reasonable and reliable.
2. Heating pressure, vulcanize time, vulcanize pressure, pressure compensate can be set, and operating is convenient.
3. Fluid pressure oil jar is independent oil jar structure, exchange is convenient. Pillar adopts chilled cast iron, has high wearable and long life.
4. Use can configure and select machine type according to self characteristic request.
5. Heating plate adopts the oil type or electric type.
Product Parameters Four colum rubber vulcanizing machine

Model	XLB-DQ300x300x2	XLB-DQ350X350X2	XLB-DQ400X400X4	XLB-DQ500X500X2	XLB-DQ600X600X2	XLB-DQ750X750X2
Total pressure(mn)	0.25	0.25	0.50	0.80	1.00	1.60
Heating plate size(mm)	300x300	350x350	400x400	500x500	600x600	750x850
Plate space(mm)	125	125	125	125	125	125
Working layer number	2	2	2	2	2	2
Piston stroke(mm)	250	250	250	250	250	250
Plate pressure(Mpa)	3.1	3.1	3.1	3.1	2.8	2.5
Main motor power(kw)	1.5	2.2	2.2	2.2	2.2	2.2
Overall size(mm)	1100x500x1100	1100x500x1200	1300x550x1500	1300x550x1500	1410x680x1750	1900x950x2028
Weight(kg)	500	750	1300	1500	2500	5000

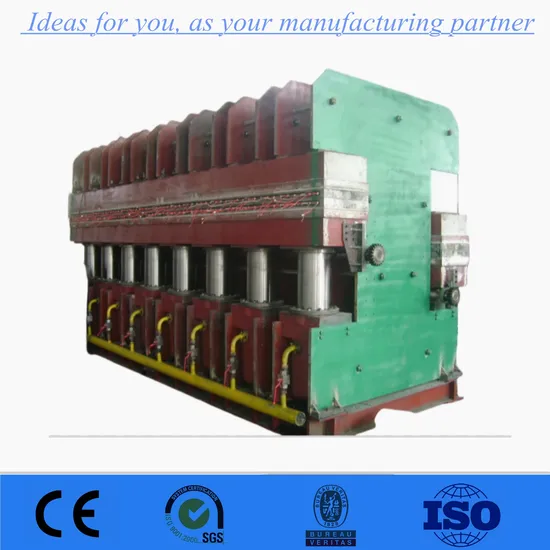

Frame Type vulcanizing machine

Type	800x800	1000x1000	1200x1200	1500x1500
Nominal mold clamping force(mn)	1.60	2.00	2.50	3.15
Plate size(mm)	800x800	1000x1000	1200x1200	1500x1500
Number of cylinder	1	1	1	1
Diameter of piston(mm)	360	400	450	500
Stoke of piston(mm)	300	300	300	300
Plate clearance(mm)	300	300	300	300
Unit area pressure of hot plate(Mpa)	2.5	2.0	1.8	1.5
Main motor power(kw)	3.0	5.5	8.0	8.0
Overall size(mm)	900x1600x2500	1100x1900x3600	1300x2100x4000	1600x2450x4200
Weight(kg)	4000	5800	6800	8000
Speed of closing(mm/s)	>=6	>=6	>=6	>=6
Speed of Opening(mm/s)	>=4	>=4	>=4	>=4

Large plate vulcanizing machine

Type	1500x2000	1800x1800	2000x2000	3000x3000	3100x4200
Nominal mold clamping force(mn)	12.00	20.00	20.00	31.50	48
Plate size(mm)	1500x2000	1800x1800	2000x2000	3000x3000	3100x4200
Working layer	2	2	2	1	1
Number of cylinder	4	4	4	6	12
Diameter of piston(mm)	500	500	600	600	600
Stroke of piston(mm)	600	600	600	800	250
Plate clearance(mm)	300	300	300	800	250
Unit area pressure of hot plate(Mpa)	4.0	6.17	5.0	3.5	3,7
Mian motor power(kw)	17	20.5	22	61	66
Overall size(mm)	2000x2500x4040	2500x2300x4100	2500x2500x4180	4500x4820x4200	4800x6500x4500
Speed of closing(mm/s)	>=6	>=6	>=6	>=6	>=6
Speed of opening(mm/s)	>=4	>=4	>=4	>=4	>=4
