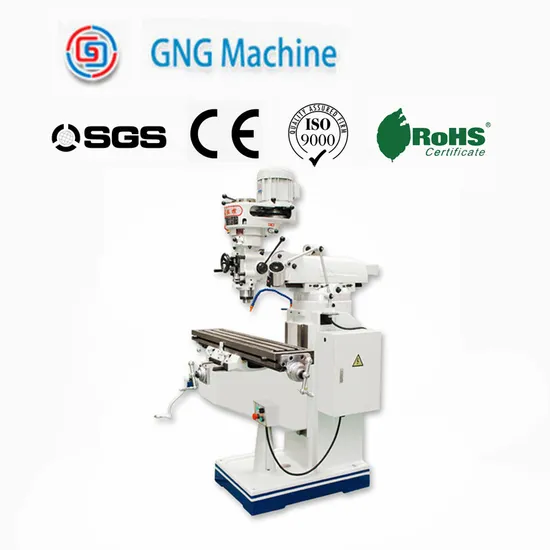

Universal High Speed Milling Machine
| US$6,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6333
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Table Size
330-1370mm (13"- 54")
Long Travel
840
Cross Travel
360
Optional Variable
60-3600
Spindle Motor
3750W
Transport Package
Package
Specification
CE
Trademark
GNG MACHINE
Origin
China Shandong
HS Code
845959000
Production Capacity
300/Per Month
Product Description
Min. Order Quantity: 1 Set/Sets Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: X6333
Voltage: 380V
Power(W): 3750W
Dimension(L*W*H): 1800X2016X2180mm
Weight: 2200kgs
Certification: CE
Warranty: 12months
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Delivery Detail: 30-45days
Specifications
Table size 254X1270(10"X50")
Spindle hole taper R8 or ISO30/40
Spindle travel127
Universal milling machine X6333
Table size: 330X1370(13"X54")
Long travel: 840mm
: 360mm
Vertical travel: 400mm
T-slot number and size: 3X16
RAM travel: 500mm
Distance from spindle nose to table surface: 0-450mm
Spindle hole taper: STANDARD ISO40
Spindle travel: 127mm
Spindle speed: Standard 16shift grade-50Hz 66-4540, 60Hz 80-5440
Optional variable - 60-3600
Auto quill feed: Three steps 0.04/0.08/0.15mm/revolution(0.0015"/0.003"/0.006")
Spindle motor: 3750W
Head swivel 90°
Head tilting 45°
Packing size: 1800X2016X2180mm
Gross weight 2200kgs
Standard accessories:
1. Drwa bar
2. Tools box and tools
3. Working lamp
4. Electric cabinet
5. Manual oil pump
6. Spindle NT40
Optional accessories:
1. X axis APF750 power feed
2. Y axis APF750 power feed
3. Coolant system
4. Plastic splash guideway sliding guards
5. Oil collecting plate
6. Variable speed head
7. X/Y axes SINO digital readout
8. X/Y/Z axes SINO digital readout
9.58PCS clamping kits
10.8PCS NT40 collect chuck
11.15PCS NT40 collect chuck
12. Spinde guard
| Model | X6333 | X6333A |
| Table size | 330x1370(13"x54") 330x1500(13"x58") | |
| Long travel | 840 1000 | |
| Cross travel | 360 | |
| Vertical travel | 400 | |
| T-slot No.and size | 3x16 | |
| Ram travel | 500 | |
| Distance from spindle nose to table surface | 0-450 | |
| Spindle hole taper | standard:ISO40 | |
| Spindle travel | 127 | |
| Spindle speed | Standard:16 shiftgrade 50HZ:66-4540 60HZ:80-5440 Optional variable speed:60-3600 | |
| Auto quill feed | Threesteps:0.04(0.0015*)/0.08(0.003*)/0.15(0.006*)mm/revolution | |
| Spindle motor | 3.75kw/5HP | |
| Head swivel | 90° | |
| Head tilting | 45° | FIX |
| Dimension of package(one miller per case) | 1800x2016x2180 | |
| Dimension of package(two miller per case) | 1800x2200x2180 | |
| G.W/set | 2200 | 2250 |
