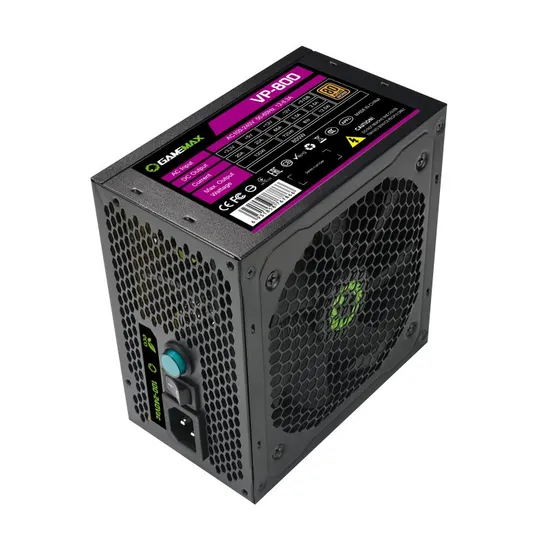

Power Supply ATX 800W, Gamemax Vp Series 80plus Apfc, Gaming PSU
| US$40.00-50.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
VP-800W
Power
500-800W
ATX Standard
ATX 12V 2.31
Fan Type
12cm
Fan Size
12"
Feature
Wide
Hard Disk Interface
2~4
80PLUS Certification
80 PLUS Bronze
Modular
Not Modular
Package
Color Box
Transport Package
Carton
Specification
0.04cbm
Trademark
GameMax
Origin
China
HS Code
84733090
Production Capacity
200000/Year
Product Description
The GameMax VP series power supply offers "Value and Performance" scheme. 80Plus ready for support high efficiency required, also it is continuing a popular for computer builds.GameMax VP Range have great features that make it a good choice for people who are looking for an efficient and reliable, good value power supply. The most suitable cost/performance ratio is the best choice for system builder. Detailed Photos
Product Parameters
| Technical Specifications | ||
| 80PLUS® | APFC 80+ Plus Compliant | |
| Efficiency Level | 80+ Bronze | |
| Noise Level | Zero (ECO-ON),<32dBA (at 100% load) | |
| Form Factor | Intel ATX 12 V 2.31 | |
| Dimensions | 140 mm (W) x 150 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | ECO-ON/OFF | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Wired Cabling |
| Cable type | Black tube shield along with colors CPU and PCIe connecor | |
| Electrical Features | Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range AC input (100-240Vac) | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | CB, CCC,CE |
| Environmental Compliance | RoHS, WEEE, ErP Lot 6 | |
Certifications
