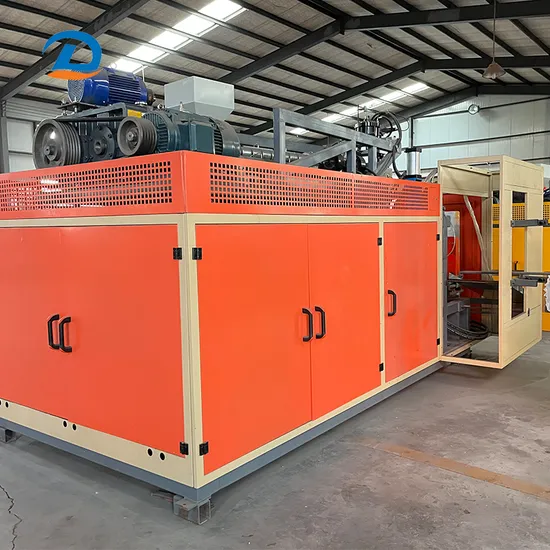

Automatic 220L 500L 1000L 2000L 3000L PP PE HDPE Plastic Bottle Jerry Can Extrusion Blow Molding Machine Plastic Barrel Blowing Moulding Machine

Product Description

Product Parameters

Production capacity	350pc/h
Screwed diameter	65mm
Screwed diameter ratio	1:25L/D
HDPE Max Output	40kg/h
Material cutting method	Hot knife
Max mold size(L×W×H)	220×300×380mm
Blowing pressure	0.4-0.6Mpa
gas consumption	0.5m3/min
Power of mechanical and electrical extruder	11KW
Heating power of extruder	10KW
Total power	23KW
Dimension mm(L X W X H)	2800*1800*2000mm
Weight	2.0T
Control type	PLC PC Control
Suitable material	PE/PP

Product Description

Detailed Photos

Die heads are used for extruding material tubes. The number of die heads can be selected according to the size of the product and therequired output.
Hydraulic cylinder that moves the mold. The whole machine has hydraulic control, making production and use more stable.
PLC touch screen, machine operation iscontrolled by PLC, easy to operate. PLC language can be selected upon request
Electrical system, including circuit switches,frequency converters and servo controllers of theentire machine
The screw is used to heat raw materials and is equipped with a heating coil. After the raw materials enter the screw, they are heated and flow into the die.
