Steel Wire Bar Straighter 3mm 6mm 8mm/Equipment Steel Pipe Straightener

Product Description

Specification

Model	GT3-6
Applicable Industries	Building Material Shops, Manufacturing Plants, Retail, Construction works, Energy & Mining
Working Capacity	3-6 mm, Cold Rolled & Hot Rolled Round Bar/Deformed Rebar
Finish Product Length	0.1 - 6m, Adjustable OR customized
Length Tolerance	≤±1 mm
Straightness	≤2mm/m
Working Speed	100-130 m/min, Max. 150m/min
Straightening Mode	Rotating Straightening Drum
Wire Feeding Mode	Electric Motor
Wire Cutting Mode	Servo Motor Cutting
Total Motor Power	4.0Kw + 3.8KW+2.6kw
Main Straightening Motor	4.0Kw, normal motor
Pulling Motor	Servo Motor Pulling 3.8KW
Cutting Motor	Servo Motor Cutting 2.6KW
Control Mode	PLC
Steel Wire Strength(Steel Grade)	Tensile Strength ≤ 550MPa Low Carbon Steel Wire
Electric capacity	≥20KVA
Power Supply Line	Cross-sectional Area: 6mm2 ; Material: Copper Material
Air consumption	Working Pressure 0.6MPa, Flow Rate 18m3/h(0.3m³/min)
Voltage	3 Phase, 380V 50Hz or Customized
Dimension(L*W*H)	1500mm×1000mm×1200mm
Weight (KG)	1.0 tons
Warranty	1 Year
Key Selling Points	Long Service Life
Mian Advantage	High Efficient and High Working Speed

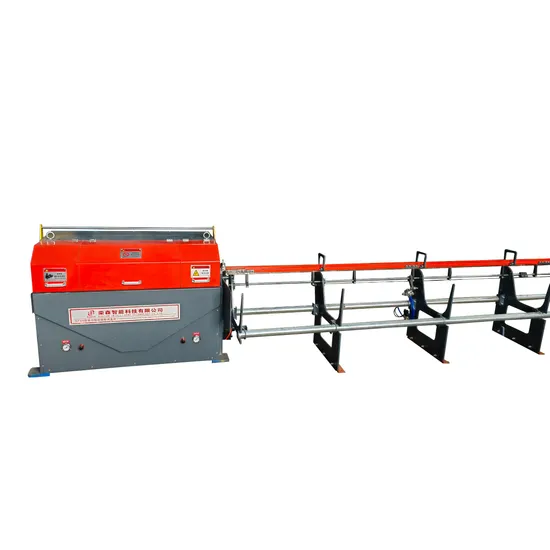

GT3-6 Steel Coil Wire Straightener and Cutter
GT Series High-Speed Steel Wire Straightening and Cutting Machine used for straightening and cutting 2-5/3-6/3-8mm hot-rolled and cold-rolled steel coil wire and deformed rebar. mostly used in steel mesh production plants, precast concrete component produces factory, normal building projects, construction, tunnel, bridge, dam, high-speed roads, High-speed trains, and so on.
FEATURES AT A GLANCE
- Working Capacity: 3-6mm
- Working Speed: 100-130m/min
- Max. Working speed: 150m/min
- Servo Motor Cutting Mode
- 3m Rebar Collect Stacker
- Voltage:3Phase, 380V, 50Hz
PRODUCT CONFIGURATION
1. Suitable for straightening and cutting cold-rolled round bar/ribbed bar, hot-rolled round/ribbed bar.2. Intelligent control: The machine is controlled by PLC(Siemens), Touch Screen(Siemens) and Servo Motor (Inovance, Best Brand in China),Frequency converter(Inovance, Best Brand in China) control Max. 150m/min working speed. Easy operation and working reliable3. Low failure rate: Due to the fine processing of parts and strict quality control, after installation and debugging, under normal working conditions, it can maintain trouble-free operation for a long time.4. World Advanced & Leading technology: Machine straightening and cutting technology 5. There are four working speeds: 70m/min, 100m/min, 130m/min and 150m/min, Normally working speed: 130m/min, if you finish product length less than 2m, suggest 70-100m/min. Max. Working speed: 150m/min6. High cutting accuracy: length tolerance: ≤ ±1mm7. High straightness: ≤ 2 mm/m
