Superior Low Noise Blower Automatic Control Vacuum Drying Machine High Efficiency Plastic Hopper Dryer for Injection Machines

Product Description

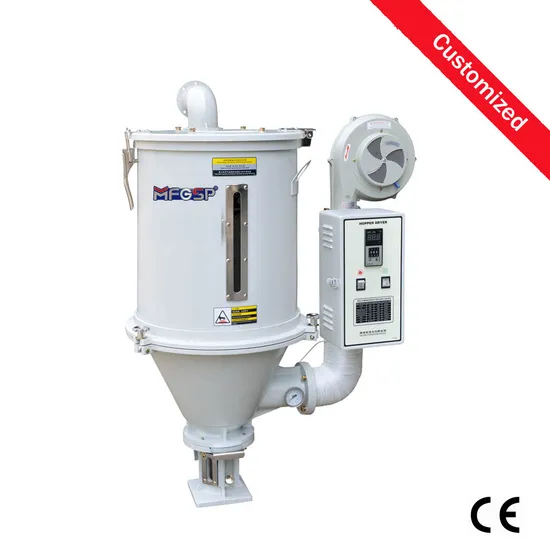

Hopper Dryer
Performance characteristic:
1.The heating barrel is made from the stainless steel to ensure that the material is not polluted and easier to be cleaned.
2.The air dispersion device of the stainless steel net plate enables the heat air to evenly blow the material.The temperature is even in the barrel to prevent material lumping.
3.There is a hinge connection structure between the heating barrel and the hopper,which facilitates opening,reloading and cleaning.
4.An open-door type magnetic base,which is convenient and easy to take out the magnet for cleaning the scrap iron.
5.The 24hours Timer startup device of any time can be matched to reduce pre-heating time on duty and improve efficiency.
6.The hot air recycler device can be matched to reduce energy consumption.
7.The Hopper dust collector can be matched to prevent the dust into the workshop.
Specifications:

Model	Capacity (kg)	Heater Power (kw)	Blower Power (w)	External Dimensions LxWxH(mm)	Seat Demensions KxKxJ (mm)	Adaptable Injectioner (g)	Weight (kg)
SHD-15	15	2.7	120	660x360x800	120x120x50	30-60	28
SHD-25	25	3.2	120	725x405x950	150x150x60	30-60	38
SHD-50	50	4.2	180	840x490x1070	160x160x75	125-500	75
SHD-75	75	5	180	900x550x1175	160x160x75	500-1000	85
SHD-100	100	7	250	955x605x1410	200x200x90	1000-1500	95
SHD-150	150	9	250	960x610x1560	200x200x90	1500-2000	120
SHD-200	200	12	400	1230x770x1660	230x240x105	2000-2500	150
SHD-250	250	14.5	400	1235x775x1790	230x240x105	2500-3000	170
SHD-300	300	14.5	400	1335x870x1810	230x230x110	3000-4000	200
SHD-400	400	18	500	1360x915x1870	280x280x120	4000-6000	225
SHD-600	600	24	800	1360x950x2080	280x280x135	6000-8000	250
SHD-800	800	30	1100	1380x1150x2250	280x280x135	8000-10000	300
SHD-1000	1000	37	3000	1400x1200x2600	280x280x135	8000-12000	360

Diagram of installation:
Structural drawings:
Application Cases:
