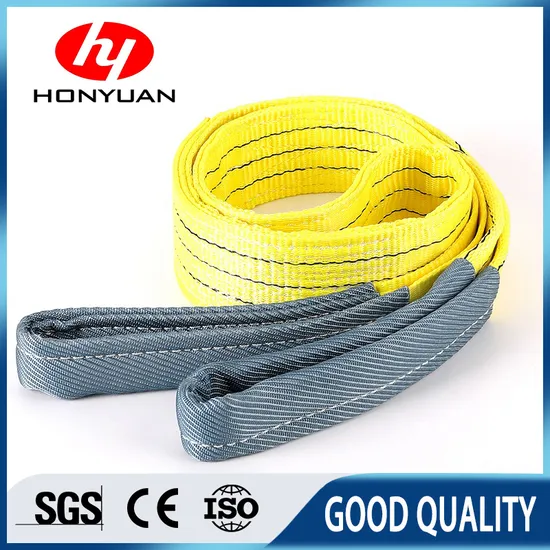

Double Sleeve Polyester Endless Round 2t X 2m Webbing Lifting Sling Belt

Product Description

Double Sleeve Polyester Endless Round Sling for Lifting Product Description
*Material:100% High tenacity industrial polyester yarn*Inner core:Made of 60000D twisted polyester yarn*Double ply outer sleeve,extremely wear-resistant*Color:Violet*Working Load:1000kg*Safety Factor:8:1,7:1,6:1,5;1*Length Available:1m to 12m*Low elongation*According to EN1492- 2+A1:2008*CE certified
Round Sling's SWL WLL M CC

Stock No. Color	WLL	SWL,WLL(t),M,CC					Double Multi-set SWL(t)
		Vertical	Choker	Vertical			Choker	Vertical	Choker	Vertical
				0-7°	7-45°	45-60°	<45°	<45°	45-60°	45-60°
		1	0.8	2	1.4	1	1.4	1.12	1	0.8
RS7010	1t	1,000	800	2,000	1,400	1,000	2,800	1,120	1,000	800
RS7020	2t	2,000	1,600	4,000	2,800	2,000	5,600	2,240	2,000	1,600
RS7030	3t	3,000	2,400	6,000	4,200	3,000	8,400	3,360	3,000	2,400
RS7040	4t	4,000	3,200	8,000	5,600	4,000	11,200	4,480	4,000	3,200
RS7050	5t	5,000	4,000	10,000	7,000	5,000	14,000	5,600	5,000	4,000
RS7060	6t	6,000	4,800	12,000	8,400	6,000	16,800	6,720	6,000	4,800
RS7080	8t	8,000	6,400	16,000	11,200	8,000	22,400	8,960	8,000	6,400
RS7100	10t	10,000	8,000	20,000	14,000	10,000	28,000	11,200	10,000	8,000
RS7120	12t	12,000	9,600	24,000	16,800	12,000	33,600	13,440	12,000	9,600
RS7150	15t	15,000	12,000	30,000	21,000	15,000	21,000	16,800	15,000	12,000
RS7200	20t	20,000	16,000	40,000	28,000	20,000	28,000	22,400	20,000	16,000
RS7300	30t	30,000	24,000	60,000	42,000	30,000	42,000	33,600	30,000	24,000

Detailed Photos

COLOUR CODE	VERTICAL WLL kg	CHOKE WLL kg	BASKET 3 WLL kg	30° WLL kg	60° WLL kg	90° WLL kg	120° WLL kg	60° WLL kg	60°CHOKE WLL kg
VIOLET	1000	800	2000	1900	1700	1400	1000	1700	1400
GREEN	2000	1600	4000	3800	3400	2800	2000	3400	2800
YELLOW	3000	2400	6000	5700	5100	4200	3000	5100	4200
GREY	4000	3200	8000	7600	6800	5300	4000	6800	5600
RED	5000	4000	10000	9500	8500	7000	5000	8500	7000
BROWN	6000	4800	12000	11400	10200	8400	6000	10200	8400
BLUE	8000	6400	16000	15200	13600	11200	8000	13600	11072
ORANGE	10000	8000	20000	19000	17000	14000	10000	17000	14000
ORANGE	12000	9600	24000	22800	20400	16800	12000	20400	16800
ORANGE	15000	12000	30000	29500	25500	21000	15000	25500	21000
ORANGE	20000	16000	40000	38000	34000	28000	20000	34000	28000
ORANGE	30000	24000	60000	57000	51000	52000	30000	51000	52000
ORANGE	50000	40000	100000	95000	85000	70000	50000	85000	70000

Certifications
Packaging & Shipping
Company Profile

Exhibition
Payment Term

FAQ:
1:Q: Manufacturer or trading company?
A: We make our own factory and also have international office doing business all over the world.
2:Q: OEM service?
A: Yes you're only expected to provide LOGO files and design files for the box.
3:Q: Sample/trial order available?
A: We do provide samples after all seeing is believing, usually free if the item is cheap, you're expected to pay for express.
YES for trial orders, however the more you buy, the less you pay for each unit.
4:Q: Lead time?
A: Usually 10~25 days after your order being confirmed. If by products which we have in stock,then you'll get them very soon.
5:Q: Quality control?
A:1.Selection of high-quality material2.Production process standardization, process standardization, refinement.
3.Testing products before bulk producation everytime.
4.The third party product inspections are acceptable.
5. ISO Quality Management System Certificated Factory
6. Full Inspection before loading.
7. Full QC report before shipment.
6:Q: How to place order?
A: After we firm up all details, you'll get a PI with product info and our bank account on it,you pay deposit/full payment sometimes and order starts after the payment arrives.
Also you can send an short inquiry below, our professional sales team will get back to you ASAP.
Hope we have the chance to benefit your business . ^ ^
