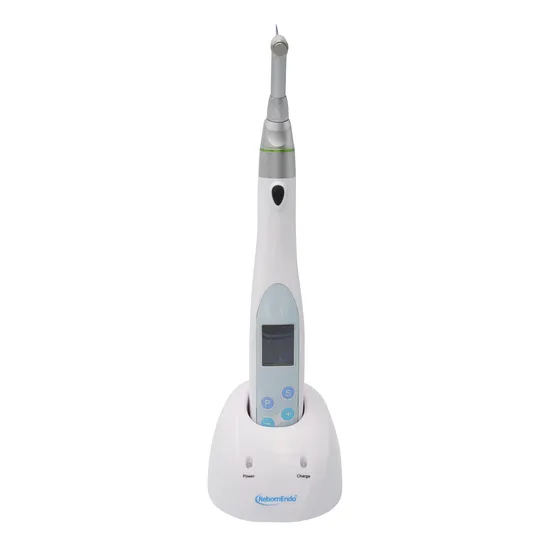

R-Smart Mini Cordless Dental Handpiece Endo Motor Instrument

Product Description

Product Description: R-Smart Mini endo motor
Advantages:
1.Machine shelf design accords with human engineering structure. No cable restrictions, flexible use.light handle, more conformable operation.
2.Origins from dental approval USA CPU chip, efficient and precise control in motor operation. Green packaging technology can increase computing speed by 60% and reduce power consumption by 40%.
3. Authoritative certified high precise motor. Low noise, low vibration and greater torque.
4. Detachable LED system.Wider operation vision. Guarantee the bright root canal environment.
5. QI wireless Charging.Wireless isolated charging design, effectively prevent liquid infiltration, no external contact, uneasy to aging.
6. Built in high-quality super large capacity rechargeable lithium battery, more durable use time.
7. 9 memory Modes. It can be configured with different speed, torque and rotation direction groups. It is suitable for all mainstream nickel titanium machine file systems.
8. Automatic shutdown without operation for 5 minutes. And the device has memory function.
9. 4 intelligent static modes to prevent the broken files efficiently.
10. When files obstruction is more than torque setting data, Endo Motor chooses to start one of the 4 setting intelligent modes.
11.Ultra-mini Contra-angle shows an excellent view performance. Detachable structure design of hand piece. High-pressure steam sterilization, avoid cross infection. Adapted for mainstream brand files system. Simple choice,easy operation.
Four working Modes:
1) File will stop when the stress is more than setting torque data.
2) When the stress is more than setting torque data, file will auto reverse. If remove the stress, file will stop.
3) When the stress is more than setting torque data, file will auto reverse. If remove the stress, file will forward roll again.
4) Reciprocating rotary motion.
Technical Specifications:

Technical Specification
Battery:	3.7V/1500mAh
Adapter Input:	100V-240V 0.8A 50Hz/60Hz
Adapter Output:	DC 10V 1.5A
Revolving speed:	200~600rpm
Torsion:	0.6~3.6 N.cm
Speed ratio:	16:1

Configuration list:

Desc.	qty
host machine	1pc
Charging base	1pc
Charger	1pc
16:1Contra Angle	1pc
LED light bead	3pcs
Oil filling nozzle	1pc
Wrench	1pc
Instruction Manual	1pc
Oil filling Manual	1pc
