Whole Zinc Aluminum Alloy Control Handwheels with Indicators for Machine Parts
| US$0.10 | 1 Piece (MOQ) |
Basic Info.
Model NO.
15005
Outside Diameter
85mm
Keyway
M5 M6
Surface Ratio
1/40
Calculate The Direction
Clockwise
Surface Treatment
Shell Surface Spray
Height
45mm
Method of Use
Suitable for Horizontal Axis or 45º Axis
Use
Can Accurately Indicate The Different Positions O
Delivery Time
1-2 Days
Stock
Enough
Quality
RoHS
Warranty Period
Lifetime
Type of Shipping
by Sea or by Air
Transport Package
Carton
Specification
10*85
Origin
China
HS Code
84879000
Production Capacity
100000-500000PCS/Month
Product Description

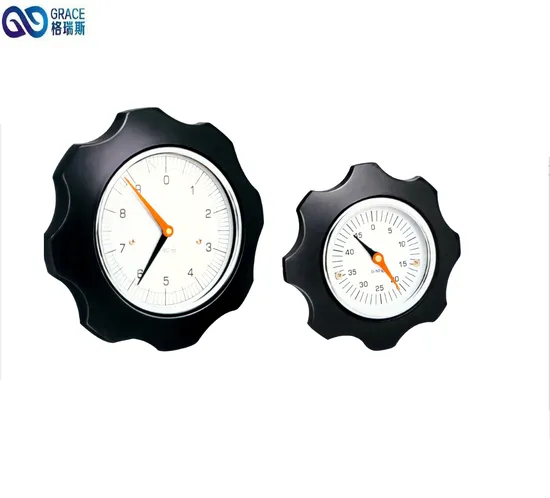

Lobe knobs for position indicator 15005Material:Zinc alloy
Shell surface spray ,bright light and matt ,color is black
Using:suitable for horizontal axis or 45º axis ,can accurately indicate the different positions of the machine parts.
The surface can be designed and manufactured according to the customer's requirement.
Design Parameters
| d | D | D1 | d1 | d2 | H | L | Surface ratio i | Clockwise | Anticlockwise |
| ∅10 | 85 | 56 | M6 | M5 | 45 | 21 | 4,6,8,10,12,15,18,20,24,25,30,40,50,80,100 | I | E |
| ∅12 | 125 | 86 | M8 | M5 | 50 | 25 |
Ordering example:d×D×surface ratio i ×I/E
