Product Description

Product Description
2022 New design poultry feed chicken pig pellet making machine/Animal Feed Pellet Production Line
Advanced and flexible technology. compact arrangement. favorable appearance and generation of high quality feed production.
Riaht selection ofmode.owoperation cost.eS5 investment and quick effect.
Collective control. real-time printing. automatic monitoring and protection.safe andreliable.
Computerized ingredients, automatic packing and high automation.
Discharge of dust and noise conforms to the environment protection requirements. The feed equipment have been succeed export to: Thailand, Indonesia, Malaysia, Philippines, Vietnam, Myanmar, Cambodia, Nepal, Bangladesh, Pakistan, India, Sri Lanka, Maldives, South Korea, Japan, Nigeria, Bulgaria, Tanzania, Mauritania, Morocco,Egypt, Algeria, Sudan, Mali, Congo, Kenya, Uganda, Ghana, Senegal, Mozambique, south Africa, Swaziland, Greece, Israel, French, Italy, Hungary, Romania, Finland, England, Saudi Arabia, Iraq, Uzbekistan, Russia, Canada, America, Haiti, Panama, Honduras, Botswana, Ecuador, Colombia, Peru, Paraguay, Trinidad and Tobago,Dominican Republic, Malawi, Brazil, Chile, Argentina, Bolivia,Australia, New Zealand, Fiji, Samoa etc.
FLow chart of 5-8TPH manual batching animal feed pellet line
export case
:
8TPH chicken feed pellet line exported to Uzbekistan
Total power : 262.15kw
Main machine
Feeder grinder / hammer mill : 1.5+90=91.5kw
Double shaft paddle mixer : 18.5kw
HKJ406 granulator : 45*2+4+1.5=95.5kw
counterflow cooler : 1.5kw
Grading sieve :2.2kw
pakcing machine :2.2*2=4.4kw
we can design the line as your different raw material and capacity , machine color is also customized as your like .


Detailed Photos
customized kinds of animal / biomass pellet line
HKJ32D animla feed pellet line
pellet capacity ;1.5-4TPH complete set HKJ 35D animal feed pellet line HKJ40D complete set
POWER : 125KW power :148kw pellet capacity :3-8t/h
pellet capacity :2-6t/h power : 200kw
Dimension:8.5*6.5*9.8m Dimension:10*7*10.8m Dimension:11.5*7.5*11.8m
Product Parameters
CE Factory Complete Chicken Feed Production Line / Feed Pellet Production Line Ring Die Poultry Chicken Feed Pellet Plant:
HKJ series granulator is the main machine for pressign pellet feed . It is suitable for large and medium-sized feed companies and large farmers .
Performance characteristics :
1. The machine has the characteristics of compact structure , beautiful appearance , environment protection and airtight , convenient use and reliable operation ;
2. The machine can be selected according to different needs of customers : circular/ring dies with diameters of 2mm-10mm and various apertures ;
3. This machine adopts cycloidal pinwheel reducer motor to feed , using quick release hoop and overload protection device;
4. It has the quick adjustment structure of the ring die and the roller gap, and the cutter cuts evenly .
5. Double layer modulator/single modulator is used to achieve adequate curing of feed .
6. Automatic control of feeding quantity and automatic lubrication device.
Picture of Biomass cattle rabbit animal feed pellet making pelletizer chicken pig poultry ring die animal feed pellet products.

1) Adjustable feeding speed, variable frequency speed regulation, low energy consumption and
high efficiency
2) Uniform feeding is provided to ensure uniform feeding across the width of the mill, improve the
crushing efficiency of the crusher and prolong the service life of the hammer and sieve
1) Speed: 2970r / min SKF motor bearing.
2) The hammer and screen clearance of the wide body micro crusher can be adjusted by 0.5-1.5,
and the quick unloading screen changing mechanism improves the screen changing efficiency.
3) The hammer piece is coated with cemented carbide, which can improve the productivity and
service life
4) The rotor designed by dynamic balance calibration reduces the high current at start-up
5) The rotor and motor are installed together and directly driven by quincunx coupling to reduce the vibration of the crusher

1) Capacity: 500kg / batch, brand bearing, double row chain drive,
2) Mixing time: 60-180s
3) The blade and chassis ensure a very low retention rate to prevent cross contamination of
materials. The discharge door is fully opened and the materials are immediately emptied without
collapse
4) Seal the outlet plug with silica gel to ensure no leakage, and use specially designed shaft seal to
ensure no leakage;

1) The model adopts inverted triangular strong belt transmission, which has the characteristics of
large torque, stable transmission, high performance, low noise, convenient operation and
maintenance, etc;
2) Imported high-quality SKF bearings and Siemens motors ensure stable and reliable
performance;
3) Add large rollers to directly improve the production capacity; Combined with tapered roller
axle, the clearance can be adjusted quickly and easily;
4) This type of machine can be equipped with ring touch Φ 1.5- Φ 12 dimensions, according to customer needs and needs to make dimensions to obtain the best technology

1)The falling direction of granular material and the cooling air move in the opposite direction to
ensure that the product is gradually cooled from bottom to top, so as to obtain better cooling effect
2)Perforated screen plate, better air inlet effect
3)Octagonal box to ensure no residue of materials

1) Metal oblique tooth wire drawing roller, after high temperature heat treatment, ensures its
service life
2)Suitable for chicken opening material, large and small adjustable
3)The feed flow is adjustable to ensure work efficiency

1) The newly designed grading screen runs smoothly
2) Two layers of wooden frame and three layers of screen ensure the separation of large
materials, finished materials and powder materials
3) Equipped with elastic nylon support plate, large torque and long service life

Model specification	HKJ 406	HKJ432	HKJ508
Host power	45*2KW	55*2KW	75*2KW
Conditioner power	4KW	4KW	5.5KW
feeding power	1.5KW	1.5KW	1.5KW
Die diameter	406mm	432mm	508mm
Roller number	2	2	2
Capacity	3-8t/h	5-10t/h	5-13t/h
Dimension	2840*2150*2210mm	2840*2150*2210mm	3400*2150*2210mm
weight	3500kg	3700kg	4100kg

Certifications

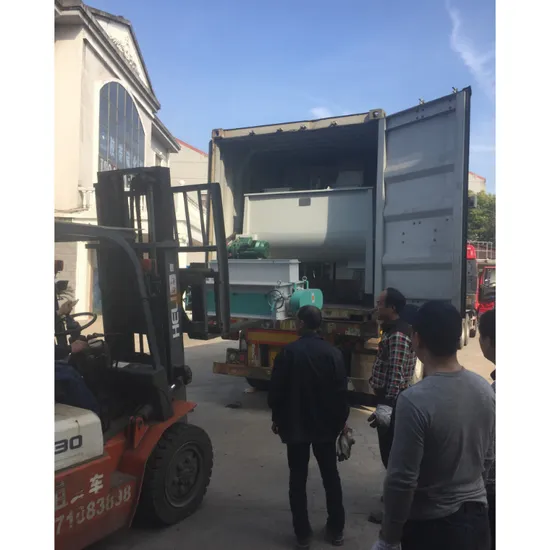

Packaging & Shipping

Company Profile

Zhengzhou zhongdebao industrial Co., Ltd, established in 1998, located in zhengzhou city High-tech Industrial Park, which integrates the R&D, manufacture, sales, installation and service of all kind is a company specializing in R&D, production and sales of feed pellet machine, wood pellet machine, pet/fish feed pellet machine, Zhongdebao has been "quality first"as a core foundation, which deploys advanced facilities of the domestic and international brand, and has won over 80 national, provincial man municipal scientific achievements, which lays a solid foundation for producing high quality products. Zhongdebao adheres to " customer-oriented" marketing concept, owns strong sales team and after service power, who always is ready to provides quality service to our customers Zhongdebao insists on the principle of "delicate manufacture, continual improvement, seeking superiority, satisfying customer"and by absorbing management essence home and abroad, introducing first-class talents, implementing first-class management and manufacturing first-class products. Sincerely cooperating with all the peoples from all walks of lift to realize mutual benefit. We are reliable partners.
