High Speed Waste Plastic Washing Machine for PP PE Pet

Product Description

High Speed Waste Plastic Washing Machine for PP PE Pet
Product Description
We can manufacturing the production line according to the customer requirement and final flakes quality requirements;
This production line is high automatic operating and save labor cost and low after maintenance. Our machinery is widely used in domestic and abroad in many countries;
Working flow:
Belt conveyor → Crusher→ Spiral pole →Heat cleaning machien→ Spiral pole → Soda delinking → Vertical dewatering machine → dry system → Cyclones Silo→control system
Features and application
Main Feature
1. PET bottle flakes crushing washing and drying
2. capacity various: 500-2000KGS/H
3. label stripper for optional
4. following machines for suggestion, such as PET strap production line or pelletizing production line, etc.
1. We have the Bale opening and feeding system which and equally feeding the material save labor;
2. You can use the manually sorting system to selecting out different color bottles and non-PET material;
3.Metal detector is optional for you which used to take out any kind of metal from the PET bottles;
4.Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the
blades use life, reduce the dust generation;
5.High speed Dewatering machine and the drying system can guarantee the final PET flakes moisture <1%.
6.The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content.
Technical parameters
1.Material and Final Products:

Raw material	PET bottles and flakes
Capacity	500kg/h
Final products describe	1.Max. moisture content:3-5% 2.Packing density:0.3G/CM3 3.Finished product size:18-22mm

2.Workshop:

Workshop	size(M*M*M): 50(L)×15(W)×5(H); Crane: equipment displacement (customers)
Power	380V/50HZ,3Phases
Wires and cables (customer supplied)	Cabinet-connection to the power supply, all devices and connections between the electrical cabinets
Water supply (customer supplied)	Equipment supply

3. Energy consumption

Total installed power	146KW (Actual consumption for the total power 70%-80%)
Water flow	10-12t(can be recycling use) pressure: 0.6Mpa
Supply heat	Temp.: 170 ºC, Pressure output flow: 0.7Mpa
People	3-6person

4. Main business item:

Project	PET bottles recycling line
Terms of payment	30% T/T as the prepay, the rest should be paid before delivery time.
Delivery time	About 50-60 working days after receiving the deposit
Warranty	1year

5.Machinery list

No.	Production	Quantity
1	Belt conveyor	1set
2	Crusher	1set
3	Screw loader	1set
4	Steamer	1set
5	Screw loader	1set
6	Friction washing	1set
7	Poaching tank	1set
8	Screw loader	1set
9	Poaching tank	1set
10	Screw loader	1set
11	Dewatering machine	1set
12	Pipe drying system and silo	1set
13	Electric appliance	1set

Remarks: all information above is only for reference; please gather the exact data by contacting us. Picture For Reference

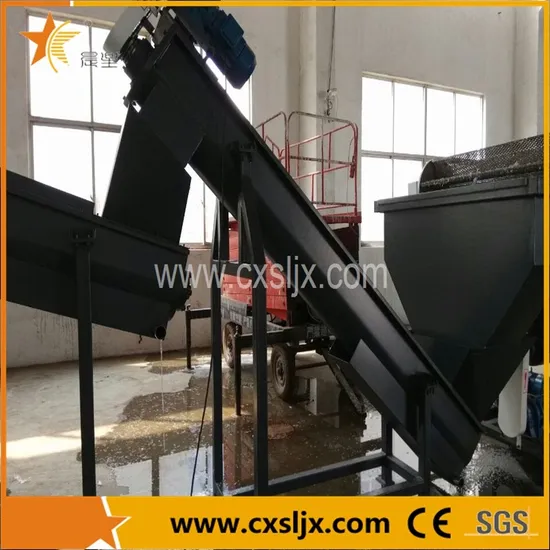

1.Machine Display:
2.Product Display:
3.Other related production:
4.Factory Display:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company. Chenxing is willing to work with you to create a future together.


FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions
2.Complete sales system covering the pre-sales, sales and after service jobs
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years
FAQ:
Q:Where are the strengths of our company?
A: Our company regards "Integrity based, and customer oriented" as its business philosophy, and regards "set an example for the industry, and create excellent plastic machinery" as its business targets.
Also we have accumulated high-quality and stable suppliers, experienced technical team and first-class manufacturing team in the past over ten years.
Q: Why choose us?
A: we are the professional manufacture focus on Pipe Production Line/ PVC Machine For The Pipe Extrusion Line/ UPVC Pipe Production Line / CPVC Machine For The Pipe Production Line and etc...
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:What is the voltage?
A: 380V 50hz 3 phase or any other voltage according to client's requirement.
Q:what services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese

Questions for Buyers
Pls think about the following questions and then send your messeage. And we will offer you our quotation ASAP.
1. Could you tell me the size of the bottle you want to crush?(Or could you send me some photos about the bottle?)
2. Could you tell me the size of the flake you want?
3. Do you have the requirement to the capacity?(How many kgs you want per hour?)

CONTACT US:If you need to know more information about our company or our product , welcome to contact us and visit our factory! Our company hope to cooperate with you to create a better future! ! !
