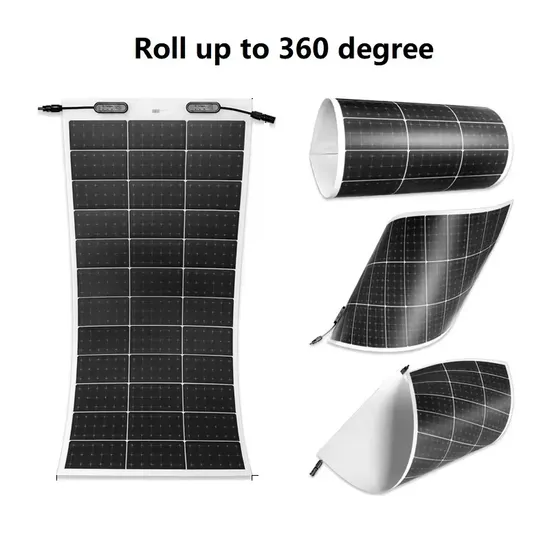

Sunport Sunman High Quality Flexible Solar Panel 380watt400watt430watt500watt520watt Solar Photovoltaic Panels with Anti-Reflection Coating Factory Price
Basic Info.
Model NO.
SMF520J-12X12UW
Number of Cells
144cells
Application
Homeuse
Condition
New
Certification
ISO, CE, TUV
Material
Monocrystalline Silicon
Pmax
520
Vmp
42.3
Imp
12.31
Voc
49.5
Isc
13.56
Module Efficiency
19.3
Maximum System Voltage
1500V DC(IEC)
Maximum Series Fuse Rating
25A
Transport Package
66PCS/Pallets
Specification
2246*1197*2mm
Trademark
Sunman
Origin
China
HS Code
8541402000
Production Capacity
2000000000watt/Week
Packaging & Delivery
Package Size
224.60cm * 119.70cm * 0.20cm
Package Gross Weight
8.600kg
Product Description
Product DescriptionProduct Parameters
| STC | SMF520J-12X12UW |
| Maximum Power ( Pmax ) | 520 |
| Maximum Power Voltage ( Vmp ) | 42.3 |
| Maximum Power Current ( Imp ) | 12.31 |
| Open-circuit Voltage ( Voc ) | 49.5 |
| Short-circuit Current ( Isc ) | 13.56 |
| Module Efficiency (%) | 19.3 |
| Operating Temperature | -40ºC to 85ºC |
| Maximum System Voltage | 1500V DC(IEC) |
| Maximum Series Fuse Rating | 25A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Weight | 8.6KG |
| Size | 2246*1197*2mm |
| STC: Irradiance 1000W/m2,Cell temperature 25ºC,AM=1.5 | Tolerances of Pmax,Voc and Isc are within ±5% |
Project Case
Company Profile
Packaging & Shipping
FAQ
Q1: How to choose the right panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.
Q4: What is the warranty for solar panels?
A4: Generally warranty for solar panel is 10 years, also we offer 25 years linear output power warranty.
Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
