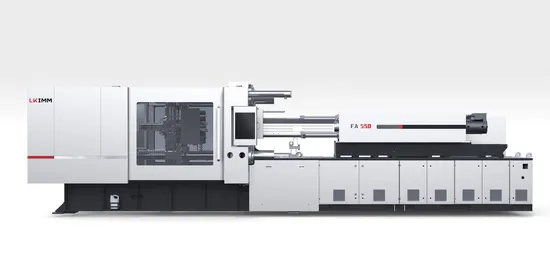

Lk Forza-III 650 Ton Plastic Injection Molding Machine

Lk Forza-III 650 Ton Plastic Injection Molding Machine

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
Forza-III 650
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Transport Package
Wooden Package
Specification
8685*2730*2280
Trademark
LK
Origin
China
HS Code
8477101010
Production Capacity
500/Mon

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.
We have more than 10 production bases worldwide, most in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customers service.
This series of products with advanced technology, stable performance, and excellent quality, is widely used in household appliances, auto parts, logistics, packaging, high-speed train, pipe fittings, and other fields of plastic products production, especially suitable for deep cavity and low-pressure injection molding process products production. The clamping force of the Forza series with 450 to 7000 tons.
Forza 450 ton - 7000 ton
1.The compact two-plate closure unit makes it possible to install large plates.
2.The module for quick change of molds is plug and play.
3.Excellent dry cycle performance.
4.Servo drive system for large tonnage machines.
5.Linear guide rails for the clamping and injection motion support
6.Single Cylinder injection unit.
Use of application
Crate, Pallet, Garage bin, Pail, Automotive, Electrical Appliances, Car Body, Power train, Interior, Home appliances
products Display
Technical Parameter List
ITEM UNIT FA650
Injection
Unit
Injection Device Injection Unit 1 Injection Unit 2
Injection System 3500 5000
Shot Weight(ps) g 1527 1737 2199 2271 2546 3143
Screw Diameter mm 75 80 90 85 90 100
Injection Volume cm^3 1678 1909 2416 2496 2798 3454
Injection Pressure Mpa 210 185 146 204 182 147
Screw L/D Ratio L/D 24 23 20 24 22 20
Injection Rate cm^3/s 586 678 858 615 690 852
Screw Speed r/min 146 130
Hopper Capacity L 125 150
Clamping Part Clamping Force KN 6500
Die Height(Min-Max) mm 400-950
Max.Daylight mm 1750
Space Between Tie Bars mm 1050*910
Ejector Stroke mm 250
Ejector Force KN 195
Others Pump Motor Capacity KW 41.4+47.7
Max. Working Pressure Mpa 17.5
Oil Tank Capacity L 1100
Heating Capacity KW 39 45
