Chipper Shredder Wood Branch Hammer Mill Wood Grinding Machine

Product Description

Introduction:

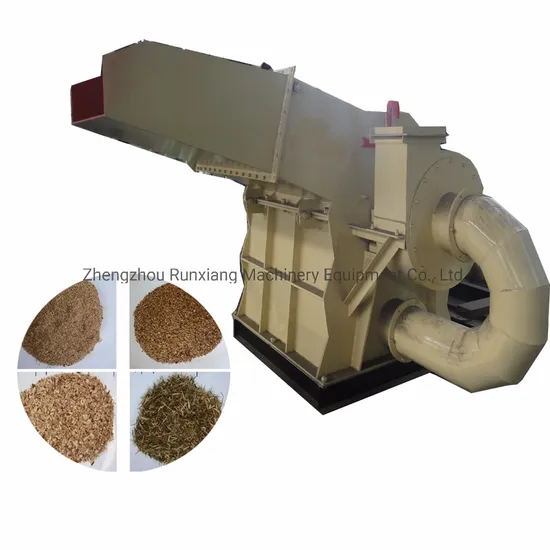

Wood crusher machine (also called: wood chip crusher, sawdust crusher) is a special equipment for wood crushing series invented by our company after years of research and design according to the needs of industrial production in China.Due to its reasonable design, compact structure, safety, durability and high production efficiency, it is effective after being promoted and used.
The Structure of the machine
The whole set of equipment is driven by only one motor, with low noise, simple structure, compact arrangement, low price, stable operation, low energy consumption, high output, good finished product quality and low processing cost.
The wood crusher uses blade cutting and high-speed airflow impact, colliding double pulverizing function in one, and can complete the micro-material sorting process at the same time.
Product application
The machine Widely apply for paper mills, power plants, medicinal matenal crushing edible fungi raw materials processing, wood-based panels, chemical rawmatenals, andscaping, biological organic feize, aquaculture and other small and medium enterprisesand personal garden use
Finished product
Technical parameters:

Model	Model 600	Model 800	Model 1000	Model 1300	Model 1500
Power(Kw)	30/37	55	75	90	110
Capicity(kg/h)	1000-2000	2000-3500	4000-5000	5000-8000	6000-9000
Blade number(slice)	40	56	64	72	88
Area covered(m2)	7	9	12	14	16
Size(mm)	2400*1600*1250	2800*2000*1500	3000*2200*1550	3200*2400*1680	3500*2400*168

Product characteristics:
1. Wood crusher is composed of chipping device and crushing device. In addition, it can be equipped with cutting knife to crush bark, straw, straw and crop products.
2. The wood Crusher combines slicing and pulverizing into one piece, which can cover branches and branches with a diameter of 1--30 cm. It is mainly used for processing pine, miscellaneous wood, poplar, Chinese fir, bark, raw bamboo and other materials. Wood chip machining for use in edible fungus culture medium
3. The wood grinder can also be used for chipping fibre stalk materials such as bamboo, grass, corn stalk and sorghum stalk.
