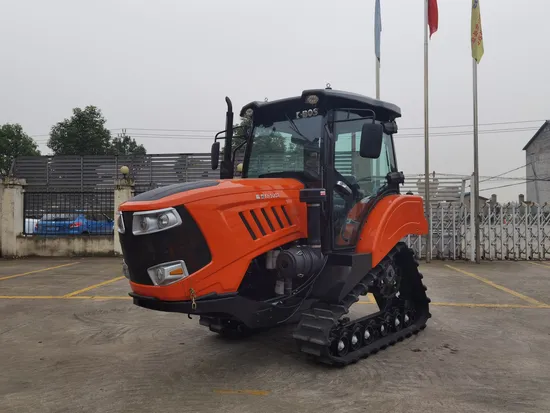

J1002 Crawler Tractor Self-Propelled Triangular Tractor with Rubber Tracks

Product Description

Product Description
The Crawler Tractor is a versatile and efficient agricultural machinery designed for various soil preparation tasks. It is also known as a Self-propelled Tiller, Rotary Cultivator, or Soil Preparation Machine. With its robust construction and advanced features, this Crawler Tractor is a reliable choice for farmers and agricultural professionals.
Equipped with a powerful engine, this Tilling Equipment provides excellent traction and maneuverability, making it suitable for a wide range of applications. Its Crawler Cultivator design allows it to navigate challenging terrains with ease, ensuring efficient field management and transportation.
Perfectly suited for tasks such as tilling, seeding, field management, and transportation, the Crawler Tractor offers exceptional performance and productivity. Its efficient design and high-quality components ensure reliable operation and minimal downtime.
Whether you are a small-scale farmer or manage a large agricultural operation, the Crawler Tractor is an essential addition to your farm machinery. Invest in this reliable and durable Crawler Tiller to streamline your agricultural processes and enhance productivity.
Order the Crawler Tractor now and experience the benefits of this versatile agricultural machinery.
Triangular cralwer walking, steering wheel operating, diffrential controlling of 360° spin in place, hydraulic steering lift, operating smartly and comfortably;
High chassis ground clearance 550mm, wide guage 1300mm, very good trafficability in mua field;
Commonly used three-point Linkage, multi-functional match different farming Implements to finish rotary tilling, ridging, furrowing works etc;

Product Parameters

Specification:
Product Model			J1002 CRAWLER TRACTOR
Overall Dimension Length×Width×Heights ( mm ):			4100×1910×2900
Weight (kg)			3150
Drive Wheel:			2WD
Engine	Engine Model		YTN3115-44, YTN3100-44
	Rated Power ( kw/hp )		73.5KW/100HP, 66.2KW/90HP
	Engine Type		Liquid-Cooled, 4-Cylinder, DI-Injection, Turbocharged.
	Rated Rotation Speed (r/min)		2300
Traveling System	Steering Operation Control		Wheel Steering Mechanical
	Gauge		1300
	Rubber Track(mm):		450×90×58
	Minimum Ground Clearance (mm)		550
	Type of Gearbox:		(8F/8R) Mechanical Gearbox
	Steering Type		Differential, Spur Gear, Planetary Gear Assembly
Working System	Rear Hitch Type		Three-point Linkage
	Hydraulic Output		2
	PTO Speed(Rpm)		720/1000 719/993
Optional	Operation Cabin		AC Cabin or Sunshade Canopy
