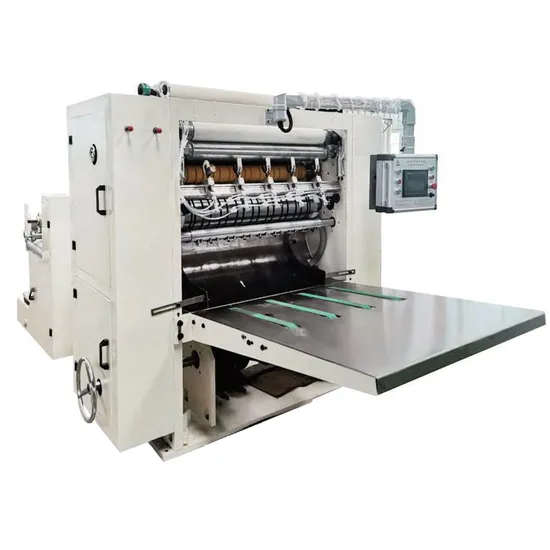

High Yield Automatic Facial Tissue Embossing and Folding Machine

Product Description

High Yield Automatic Facial Tissue Embossing and Folding Machine
1.Technology Specifications

Model	14T	16T	18T
Max width of base paper	2850 mm	3150 mm	3650 mm
Longitudinal cutting knife	14 front sets and 14 rear sets	16 front sets and 16 rear sets	18 front sets and 18 rear sets
Vacuum system	45 kw	55 kw	75kw
Main unit power	7.5 kw	7.5 kw	11kw
Dimension	8000*5500*2300 mm	8000*6000*2300mm	8000*6500*2300mm
Weight	12000kg	13000kg	15000kg
Folding speed	500-800 pcs/min/line
Max diameter of base paper	1500mm
Core inner diameter	76.2 mm
Pressure of pneumatic system	> 4 kg/cm^2 (provided by the clients)

2.Main Technical Features
New type of tissue paper folding cutting strcuture which uses parabolic arc type surface knife,significantly enables lower shear stress,noise and cutting knife loss.(This structure has won a patent for invention) Use four-spoke structure vacuum folding roller which has bigger roll diameter and good rigidity, ensures the stable running and high-speed opertation of the machine. New structure of air valve folding rollers can be ventilated on both sides at the same time and can be adjusted individually during operation with just a 45 kw vacuum pump.(This structure has won a patent for invention ) New type jumbo roll holders with pneumatic auto loading uses heavy full piece steel board structure and can load jumbo roll up to 1500mm diameter and maximum 2 tons .Paper unwinding system uses coreless shaft and plug sleeve type structure that significantly reduces the labor intensity. Control system adopts special developed division of constant tension control system,equipped with tension automatic control functions and automatic/manual function for edge subtense and electriacal control. 3.After-sales service
♥One year guarantee for whole machine, all life follow-up service.
♥24 hours technical support by email.
♥Technicians overseas set-up and workers training.
♥User- friendly English for operation system.
4.Packaging and delivery
Packaging Details:Stretching film packing
Delivery Detail:Shipped in 60 days after payment
THE PACKING IS SEAWORTHY AND SAFE.
5.Exhibition
6.F&Q
Q1: What is the warranty for the machine?
A1: For the machine,we offer one year warranty.If any quality problems occurred under normal condition during this period ,we will take on the costs of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least,
we also provide abroad technical training service and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over 10 years experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material,auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with favorable price if it is out of the warranty.
