Hot Sale Door Paper Honeycomb Equipment

Hot Sale Door Paper Honeycomb Equipment

US$120,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HCM-1600
Power(W)
40000
Weight
21-25 Tons
Model Number
Hcm-1600
Operator
3 Persons
Voltage
380V
Brand Name
Shenxi
Transport Package
Plastic Film Wrapping
Trademark
shenxi
Origin
Jiangsu, China
Production Capacity
1 Set /Month, 3-8 Tons/ Shift

Product Description

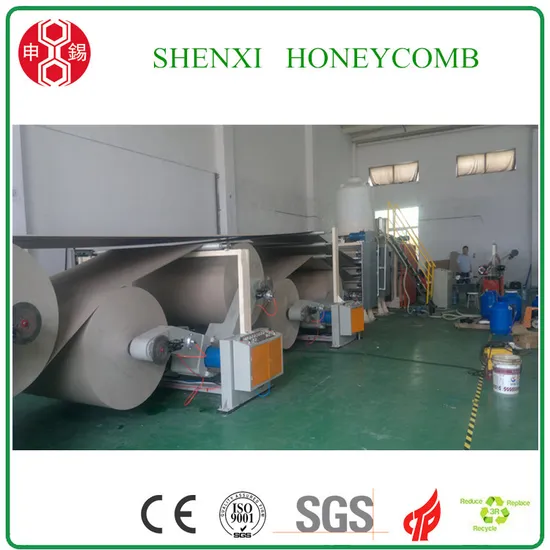

1.Full-automatic Honeycomb Core Machine
1.1 Description
This machine is the newest type of honeycomb core making machine. It use 4-8 layers of medium paper to unwind, apply glue, heat, press and cut, to get the paper honeycomb in one stop.
It has two kinds of glue applying system: glue roller applying & glue pipe system. Customers can choose proper model according to your local glue supply.
In this machine, glue break function can be added, to make honeycomb slice /block for door and furniture factory.
Features: Shenxi honeycomb core machine, whole line chooses Schneider, Omron, Delta/Mitsubishi , SEW or Yongyuan motors, all belongs to international brand, which can be found in local market. Blades in honeycomb core cutter, use tungsten steel blade, HRA 85-90. One set of honeycomb blades can be used for continuous cutting (8 hours a day ) for over 3 months without sharpening. Gluing system , no matter in roller type or glue pipe system, quick change cell size. 5-10 minutes to change different cell sizes. Height setting controlled by servo motor, all computerized, set on touch screen, simple and easy. 2 minutes to change a different honeycomb height. With aluminum 7075 as the reciprocating knife frame, lighter but stronger for high speed cutting. Honeycomb cutter, can produce the paper honeycomb from 6-100mm in one machine, a high variety of all products in market.
1.2.Specification
No. Item HCM-2000
1 Thickness of honeycomb paperboard 6-100mm
2 Width of paper core (before expanding) 2000mm
3 Honeycomb core cutting speed 0-800 cuts/min.(decided by thickness)
4 Cutting tolerance +-0.1mm (with ring crush index over 7.0 Nm/g, thickness less than 50mm)
5 Applicable paper 90-200gsm corrugated paper as core paper(over 200gsm, use 4 layers)
6 Qty of paper reels 6
7 Cell size 8-40mm (according to customer choice, choose two cell sizes)
8 Heating drying method Electric heating /steam heating (according to customer condition)
9 Total Engine power 42KW
10 Installation power 70kw (electric heating system)
11 Normal working power consumption 30-40kw (electric heating)
12 Man power 3
13 Layout 28000X4500X3000mm
14 Weight 30 Tons
15 Power supply Three phases, 380V/50Hz
