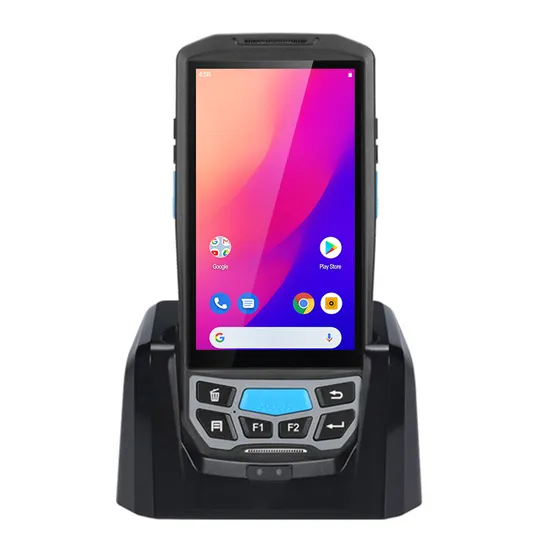

Android 9.0 NFC RFID 2D Qr Code Reader Handheld PDA Barcoder Scanner Rugged Smartphone
Basic Info.
Model NO.
UNIWA S9000
Kind
Laser Scanner
Scan Speed
200 scans/sec
Scanning Light Source
Laser
Usage
Barcode Scanner
Network Scanning
Support Network
Interface Type
USB
Scanning Element
Laser
Optical Resolution
300dpi
Application
Commercial Application
Operation System
Android 9.0
Battery
Removable 3.7V/4800mAh Li-ion Battery
Camera
8MP Af Rear Camera with Flashlight, Anti-Shake,
Display
5.0 Inch IPS Screen, 1280*720px, Support Glove Tou
RAM/ROM
2+16GB/3+32GB Optional
Processors
Mt6761 Cortex-A53 Quad-Core, 2.0GHz
NFC
13.56MHz, Reading Distance: 2cm-5cm
Gnss
Support GPS/a-GPS/Galileo/Glonass/Bds
SIM Card Slot
*1
Waterproof
IP66
WiFi
IEEE 802 a/B/G/N
Network
4G: FDD-LTE B1/B3/B4/B7/B8/B12/B20; Tdd-LTE B38/B3
Infrared Module
Wavelength: 940nm; Operating Frequency 38kHz
Fingerprint Recognition
Optional (508 Dpi, 11.3*12.4mm)
UHF RFID Module
Frequency 840-960MHz, Reading > 1.5 Meters
Transport Package
Carton
Specification
20PCS/CTN
Origin
China
Production Capacity
5000PCS/Month
Product Description
Product FeaturesAndroid 9.0 NFC RFID 2D QR Code Reader Handheld PDA Barcoder Scanner Rugged Smartphone
Highlights: 1) 5.0 Inch Glove Touch Screen 2) IP66 Waterproof 3) Built-in N6603 2D Scanner Module 4) Fingerprint/NFC/RFID/ID Card Modules Optional 5) Removable 4800mAh Battery 6) Special Charging Dock Optional 7) 8MP AF Rear Camera with Flashlight 8) Support PSAM Card Detailed Photos
Product Parameters
| BASIC INFO | |
| Model No. | UNIWA S9000 |
| Operating system | Android 9.0 |
| Dimension | 178*78*24mm |
| Weight | 330g (include battery) |
| Material | ABS+PC+Metal |
| Color | Black |
| Languages | Multi-languages |
| HARDWARE | |
| Display | 5.0 inch IPS capacitive touch screen,1280*720px, support glove touch |
| Processor | MT6761 Cortex-A53 quad-core, 2.0GHz; GPU: PowerVR Rogue GE8300 |
| RAM | 2GB RAM, 3GB optional |
| ROM | 16GB ROM, 32GB optional, support TF card up to 128GB maximally |
| Camera | Single camera, 8MP AF rear camera with flashlight, anti-shake, macro shooting |
| 2D Scanning Module | Built-in Honeywell N6603 |
| Battery | Removable 3.7V/4800mAh Li-Po battery |
| Sensors | Acceleration sensor, light sensor, proximity sensor |
| Vibrator | Support |
| NETWORK & CONNECTIVITY | |
| Bands | 2G: GSM 850/900/1800/1900MHz |
| 3G: WCDMA 850/900/1900/2100MHz | |
| 4G: FDD-LTE B1/B3/B4/B7/B8/B12/B20; TDD-LTE B38/B39/B40/B41 | |
| WiFi | IEEE 802 a/b/g/n, support 2.4GHz/5GHz dual-band WiFi |
| BT | V4.0 |
| GNSS | Support GPS/A-GPS/Galileo/Glonass/BDS |
| I/O INTERFACES | |
| Micro SIM card slot | *1 |
| PSAM card slot | *2 |
| TF card slot | *1 |
| USB Type-C port | *1, support OTG function |
| POGO Pin | *1 |
| OPTIONAL FUNCTIONS | |
| NFC | 13.56MHz, reading distance: 2cm-5cm |
| Infrared module | Wavelength: 940nm; Operating frequency 38kHz; Communication distance > 4 meters |
| Fingerprint recognition | Optional (508 dpi, 11.3*12.4mm) |
| ID Card Identification | Reading distance 0~5cm; Reading time <1.55s; Operating frequency 13.5MHz±7kHz |
| 1D scanning module | MINDEO SE966/ Honeywell N4313 |
| UHF RFID Module | Operating frequency 840-960MHz, Reading distance > 1.5 meters |
| LF RFID Module | Working frequency 125K/134.2K |
| RELIABILITY | |
| Waterproof | IP66 Waterproof |
| Drop-proof | 6 sides can withstand 1.2m height, 30 impacts on concrete floor, in operation status |
| Rolling test | 6 sides can run stably after 1000 times rolling continuously for 0.5m |
| Temperature Range | Operating: -20ºC~55ºC; Storage: -40ºC~70ºC |
| Humidity range | 5%RH~95%RH, Non-Condensing |
| ACCESSORIES | |
| Power adapter | *1 |
| USB cable | *1 |
| Hand strap | *1 |
| User Manual | *1 |
| Charging Dock | Optional |
