Tractors Mounted Disc Harrow Heavy Duty Hydraulic Disc Harrow

Product Description

tractors mounted disc harrow heavy duty Hydraulic Disc Harrow
Product Description

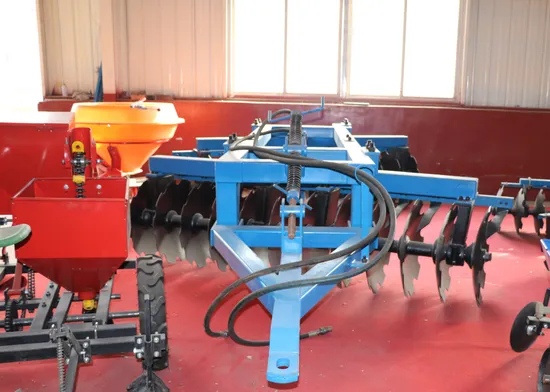

1BZ series hydraulic heavy disc harrow is well suitable for heavy clay soil, waste land and weedy field as well,mainly suitable for stubble cleaning before farming , it can break the hardened soil and return the chopped straw to the soil, and also can crash the soil after tillage and level the land. The heavy-duty disc harrow can cultivate the soil instead of plow.Technical Specification• This hydraulic heavy duty disc harrow is trailed for 70-180hp tractor.• Own hydraulic system to lift and down the transport wheel freely.• High quality of difunctional oil cylinder.• Compact and strong structure make the machine have long service life.• Widely working width of this heavy disc harrow to be 1.8-5.3m.
Product Parameters
This series hydraulic offset heavy duty disc harrow has the high working efficiency,strong capability into the soil,and after plough loosen soil.This harrow can highly adapt to the sticky heavy soil,uncultivated filed and those plots of many weeds.It is made of square tubes welded together which ensures simple structure and good rigidity.The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and smallturning radius,thus the production efficency and lifetime of the harrow is dramatically improved. With reasonable structure, strong ability to rake, durable, easy to use.

Model	1BZ-1.8	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-3.8	1BZ-4.2	1BZ-5.3
Working width(mm)	1800	2000	2200	2500	3000	3400	3800	4200	5300
Working depth(mm)	200-250
Diameter of disc	660mm/26inch								660mm/26inch
Thickness of disc (mm)	5								6
No. Of disc (pcs)	16	18	20	24	28p	32	36	40	48
Weight (kg)	1150	1250	1350	1500	1600	1800	2100	2300	3750
Matched power (hp)	60-70	70-80	80-90	90-100	100-110	110-120	130-140	150-160	160-180
Linkage	Hydraulic trailed with tractor

Detailed Photos
High quality steel raw materials, suitable hardness, not easy to break and deform.
The whole part has been adjusted to pass the balance test both in static and moving states.
Blade uses brand water-based paint in painting, which is energy saving. And drying process is added to improve the quality of the paint adhesion to blade surface.
Disc harrow using full - clad bearing, It is not easy to enter sand and water, and can be added with butter for a long service life.
Packaging & Shipping

Disc harrows can be packed in iron frame, if the specific model of the whole cabinet is different, the quantity that can be installed is also different. Company Profile
Established in 2000 year, Shandong Bank Invenstment Agriculture Development Pvt. Ltd. (BIA) is a globally renowned manufacturer of Farm Equipment under the brand name BIA. Synonymous with quality and durability, BIA is a brand of choice amongst farmers in CHINA and 100 other countries. Company`s diverse range of products include Tractor, Power Tiller, Seeder equipments, Sprapers, Tillage Implements ( Disc harrow, Disc plow, Rotary tiller, Cultivator, Furrow plough Ditching ridger, Scraper, Hole digger) etc. Marked by 20 years of experience, we have been contributing to agricultural growth by providing innovative implements at the most affordable prices.
With our pursuit to perfection in all the spheres of the business, we have made a strong presence in domestic as well as overseas market. Our state-of-the-art manufacturing units are equipped with advanced machinery capable of executing bulk orders with precision. We use best quality of raw material and sustainable engineering designs for manufacturing innovative implements of International standards. Our company has been certified with ISO 9001: 2008 for following a world-class quality management system.
FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
5. Q: Why choose us for cooperation?
A: Comparing with our competitors, we have much more advantages as follows: 1. More than15years in manufacturing farming machine
2. More Professional Sales staffs to guarantee the better service
3. More agri machines for your choice
4. More New products into your range to avoid price competition
5. Larger quantity production and shipment
6. Better quality to guarantee better Credit.
7. Faster delivery time: Only7days
8. More stick quality checking before shipment.
9. More reasonable after-sales service terms. contact way
