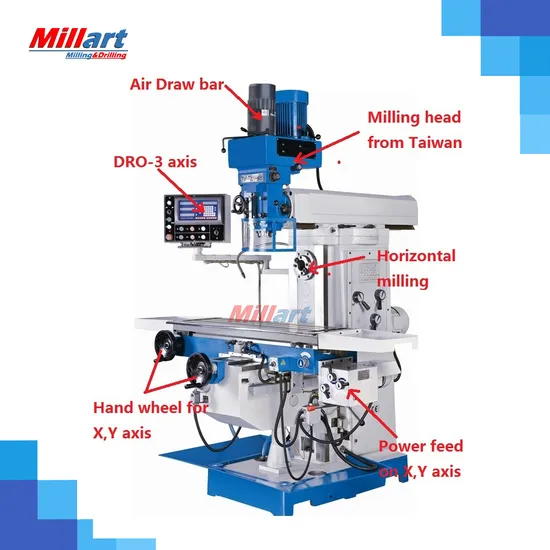

High Quality Knee Type Turret X6336 XL6336 5HP High Precision Universal Vertical Milling Machine

Product Description

Product Description
Feature:
1, Heavy, solid model made of high-grade Meehanite casting
2, Solid rectangular slide ways for Y-axis
3, All axis with adjustable dovetail slide ways
4, Right-left handed rotation
5, High concentricity precision due to taper roller bearings, less than 0.01mm measured in the spindle sleeve
5, Automatic spindle sleeve feed
6, Main switch with motor protection, right/left handed rotation switch, emergency-stop button
7, Price-efficient and value stable
Specification:

Specification	Unit	XL6336
Spindle taper		ISO40(VERTICAL) ISO50(HORIZONTAL)
Spindle travel	mm	140
Sleeve feed	mm/r	0.04/0.08/0.15
Distance from vertical spindle to column	mm	200-600
Distance from vertical spindle to table	mm	180-530
Distance from horizontal spindle to table	mm	0-350
Distance from horizontal spindle to arm	mm	230
Spindle speed range	r/min	63~2917/10(vertical) 60~1800/12(horizontal)
Table size	mm	1500×360
Table travel	mm	1000×320×400
Range of longitudinal,cross travel	mm/min	15~370/(MAX.540)
Up/down speed of table	mm	590
T of table(N0./WIDTH/DISTANCE)	mm	3/18/80
Main motor	kw	3.7(vertical)4(horizontal)
Motor of table power feed	kw	0.75
Up/down motor of headstock	kw	1.1
Coolant pump motor	kw	0.09
Overall dimension	mm	2220×1790×2360
N.W./G.W.	kg	2340/2540

Standard accessories:
Drill chuck
Collet chuck kits
Working lamp
Coolant system
Reduction Sleeve
Mill arbors
Draw bar
Chip tray
Some tools
Optional accessories:
3 axis DRO
Variable spindle speed
Air draw bar
58 pcs Clamping kits
Spindle protection
Worktable protection
Rotary table HV10
Dividing head F11-160A
Machine vice 160mm
