PP PE HDPE LDPE Bottle Woven Bag Film Washing Recycling Machine

Product Description

Product Description

HAORUI plastic waste recycling machine for PP PE HDPE LDPE bottle/film washing line

this is one of series of HAORUI plastic recycling machine , HAORUI 2023 plastic waste recycling machine for PP PE HDPE LDPE bottle/woven bag/film washing line .
this 2000kg/h rigid PP plastic washing line were installed in Saudi Arabia, the PP flakes moisture less than 2%
"HAORUI"also can produce PET bottle washing recycling line from 1000kg/h to food grade /fiber grade 7000kg/h.

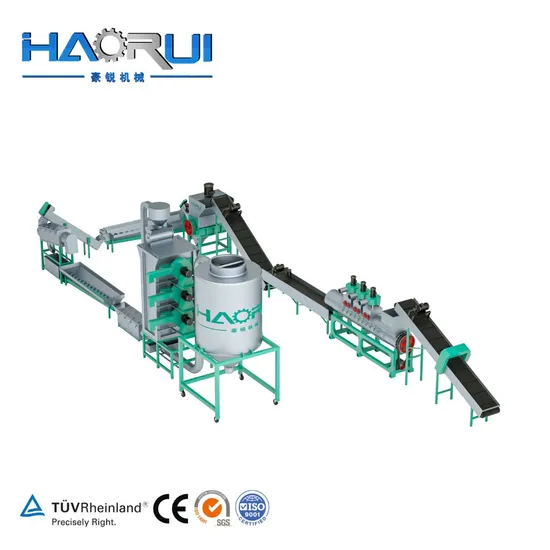

machine	HAORUI 2023 plastic waste recycling machine for PP PE HDPE LDPE bottle/woven bag/film washing line
capacity	2000kg/h
whole line size	50m*6m*5m
engery consumption	280kw/h
water consumption	4tons water/h ( can be recycled)
labors	5~8workers
voltage	380v 50hz

machine	belt conveyor(conveyor the plastic PP into crusher)
motor	5.5kw
The raw material of belt	rubber/pvc
The thickness of two side plates	3mm
material	carbon steel
Size	1000mm(W)*8000mm(L)

machine	PP PE crusher (crush the PP PE into flakes)
motor	75kw
The cover opening	hydraulic
rotor blades	6pcs
fixed blades	4pcs
blade material	SKD-11
size	2000mm(L)*2100mm(W)*3000mm(H)

machine	screw(conveyor the PP flakes into next machine)
motor	2.2kw
material	304ss or carbon steel
advantage	can save the landing space

machine	floating tank
motor	3kw
The number of roller wheels	3pcs
The number of bottles worm shaft	1pc
The thickness of steel plate	4mm
Thickness of the screw	6mm
size	5000mm(L)*1300mm(W)*2000mm(H)

machine	high speed friction washing machine
usage	Quick and efficient kneading, cleaning and separation
motor	2.2kw
The raw material of mesh	304 stainless steel
The thickness of blade	10mm
size	4000mm(L)*500mm(W)*2000mm(H)

machine	dewatering machine(dry the PP PE flakes )
motor	30kw
The thickness of mesh	2mm
Raw material of mesh	304SS
Thickness of the blade	10mm (the blade cane be disassembly,easy to clean)
size	2700mm(L)*900mm(W)*1700mm(H)

solution
Producing process
working room
Company information
Baoding Haorui Machinery Manufacturing Co.,ltd was established in 1992,is a professional manufacturer and exporter that is concerned with the design,development and production of PET bottle crushing and washing machine, PP PE HDPE LDPE plastic crushing and washing machine, pelletizing machine .
There are over 100 technicians in our workshops which covers 20000 square meters. Over 28 years of plastic recycling machines production experience ,enable us to be TOP3 plastic recycling machine factory in China. Our own R&D team make our machine design unique, OEM and ODM service are also welcome. Our main products include bale opener, label remover, plastic crusher, floating tank, screw feeder, high-speed friction washer , hot / cold washer, dewatering machine, pipe dryer and so on.
We insist on the principle of "quality is first" and inspect the machine after producing " which make our market more popular in Domestic and over 40 sets of PET bottle washing line(four 6000kg/h capacity in Nigeria ,Ghana etc), PP PE HDPE LDPE washing line ,pelletizing machine were installed in Middle East,Africa,South America,South East, South Asia and so on
Our team
FAQ:
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
Q: How about the rate for removing the labels by Label remover?
A: Compressed bottle: more than 96%
Un-compressed bottle: more than 98%
Q:What's the temperature of steam washer ?
A: Usually 80-90ºC ( If the temperature is over 100ºC, the Flake will be roll.so the best temperature
is 80-90ºC)
Q: What's the moisture after Horizontal dewatering machine?
A: About 1.8%. Adopt Swedeen bearing, with bearing layer on the surface of screw blades
for longer working life.
Q: How often are the Crusher blades sharpened?
A: After continuous working at 30-40hours, the blades have to be sharpened
Q: How long does it take for changing blades-Remove and install blades?
A: Depending on the worker skilled or not. Normally 2-3hours
