Basic Info.
Automatic Grade
Automatic
Type
Filling and Sealing Machine
Forming Species
Bag Moulding
Forming Function
Filling, Seal, Weighing
Packaging Material
Plastic
Hopper Type
Double Weighing Hopper
Transport Package
Wooden Box
Production Capacity
1000/Year
Product Description
Product Description1.Technical Parameters

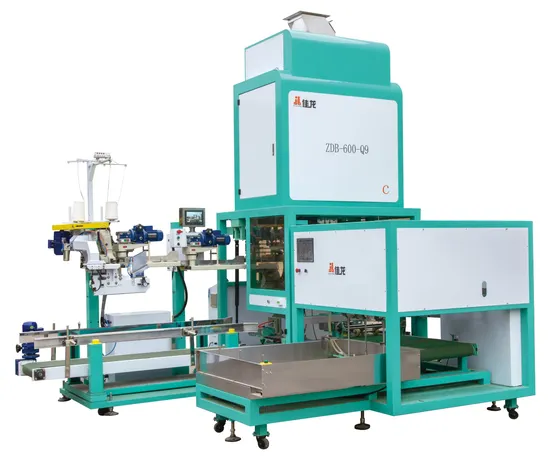

Model | ZDB-600-Q9 |
Bag Size Range | L:730-1100 W:330-650 |
Speed | 500~600 bags/hour |
Weighing Range | 25~50kg |
Applicable materials | Granular materials such as rice |
Air pressure | 0.4~0.6MPa 15m3/h |
Power/power consumption | 380/220VThree-phase five-wire 6KW |
Bag storage | 200 pcs |
Dimension DD | 3550×3700×3250 |
No. | Name | Controller |
1 | Touch Screen (weighing controller) | Switzerland / Mettler Toledo |
2 | Load Cells | USA/Celtron |
3 | Power Switch | Japan/Omron |
4 | Limit switch | Japan/Omron China/Zhengtai |
5 | Miniature Circuit Breaker | France/ Schneider |
6 | button,knob | France/ Schneider |
7 | intermediate relay | Germany/Siemens |
8 | cylinder | Taiwan/AirTac |
9 | Electric cylinder | Japan/SMC,IAI |
10 | solenoid valve | Taiwan/airtac |
11 | Servo motor | Japan/ Panasonic |
12 | motor | China/Gaoqi |
13 | Vacuum pump | Germany/leybold |
14 | Folding machine/traction machine "Qinggong" QG4900 (speed regulation) | "Qinggong" QG4900 |
15 | Stitching machine | Newlong Doule Lines/4threads |
2.Application & Packing SampleThis Rice bag packaging machines for packing rice and other small granular materials, such as wheat, lentils,corns,
sugar,beans,seeds etc.3.Function & Featurers* Double working station bag giving system. 100-300 bags can be stored.There are detectors for alarm if either of working station's bags are finished.
* There is air pressure detecting device in the process of picking up the bag, opening the bag , clamping the bag and filling the bag. Unqualified bags will be kicked out automatically without stopping the working.
* High speed weighing scale.
* Bag-clamping movement and discharge gate are using two independent systems which make the bag clamping more stable
* Using the big finger cylinder can make sure the bag mouth to be smooth.
* It adopts plastic chain plate conveyor belt, gear meshing transmission, which is not easy to slip and deflect; the conveyor belt and the upper guide bag mechanism adopt mechanical linkage to ensure the synchronization of the conveying process.
* All the major motoring are using servo moters. It's very easy to adjust fordifferent packing specifications, no need manual adjustment.Our CompanyZHANGZHOU JIALONG TECHNOLOGY INC,has been focus on designing and producing weighing and packing machines, vacuum packing machines for 20 years. Our company are strict accordance with ISO-9001:2008 international quality control system. As the first listed company of automatic weighing and packing machine industry in China, JIALONG has taken up to 60% market share of Chinese big rice mills. Today,JIALONG has exported its products to more than 50 contries and enjoyed a good repution in the international market for its good quality products and professional serivce. ExhibitionOur ServicePacking & DeliveryPacking Details : Packing, polywood boxes.Paste shipping marks according to customers' requirement
Lead time : 15-30 days after received the depositCustomer PhotoFAQQ: Are you trading company or manufacturer ?A: We are factory.Q: Can you offer oversea service?A: Engineers available to service overseas.Q: How about the guarantee period?A: One year whole machine guarantee.Q: What is the lead time?A: 20-40 days after received the deposit.
