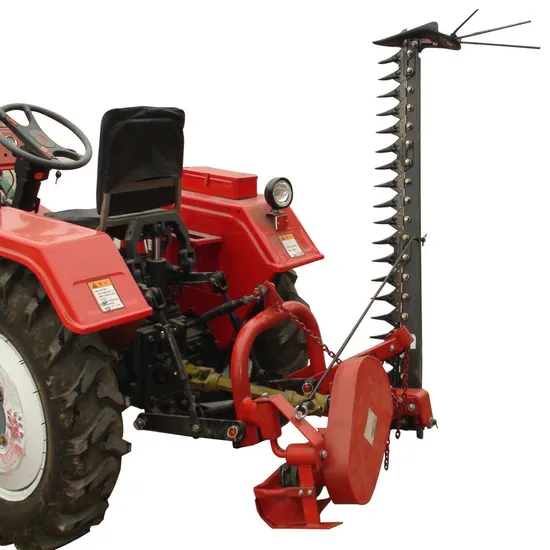

Agriculture Implement Side Sickle Bar Mower for Sale
Basic Info.
Model NO.
9g-1, 4
Application Field
Agriculture, Forestry
Farming Policy
Mountain Machinery
Power Source
Tractor
Operation
Arable Machinery, Movable Operation
Traction Type
Hanging
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
ECE, EU, CE
Color
Red
Warranty
1year
Product Nmae
Sickle Bar Mower
Working Width
1400mm
Stubble Height
50-80mm
Pto Speed
540r/Min
Weight
200kg
Matched Power
12-20HP
Transport Package
Iron Frame Net Box
Specification
ECU, CE
Trademark
YCHS
Origin
China
Production Capacity
1000sets/Year
Product Description
Model 9G series of sickle bar mower takes advantage of the offset crank link mechanism to drive the cutter blade mow grass, and it is adequate for cutting the natural and planted grasses in ranch, mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues is lower after cutting.Advantages: This mower is a 3-point pitch sickle bar mower. Double knife cutter bars have the advantage of a dynamic balance achieved by having two exactly similar knives reciprocate in opposite directions thereby generating less vibration than single knife cutter bars.
| Model | unit | 9G-1.4 | 9G-1.6 | 9G-1.8 | 9G-2.1 |
| Working width | mm | 1400 | 1600 | 1800 | 2100 |
| Working depth | mm | 50-80 | |||
| PTO Rotation speed | r/min | 540 | |||
| PTO shaft spline | 6 spline | ||||
| Total weight | kg | 120 | 124 | 128 | 135 |
| Matched power | hp | 12-20 | 15-20 | 20-30 | 20-30 |
| Linkage | Three-point suspension I type | ||||
