Tony 2024 New Design Ring Die Pellet Mill Tyj551-III with Power 132kw

Product Description

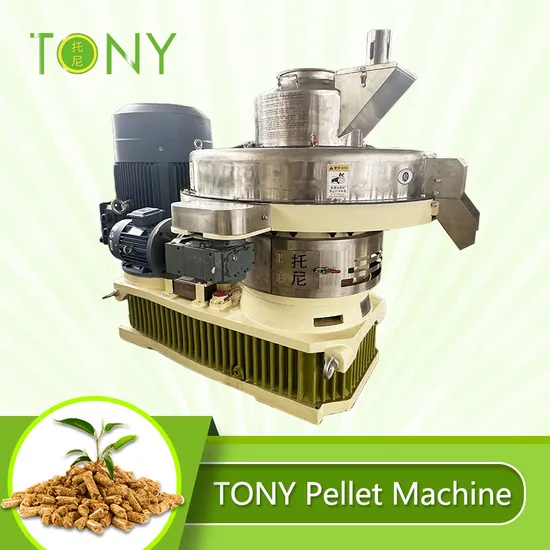

TONY 2024 New Design Ring Die Pellet Mill TYJ551-III with power 132kw
Machine characteristics
1.Vertical hopper: This design can avoid the raw material be stuck in granulating room.
2.Cooling system: As the pelletizing process will generate high temperature, it will lower the service life of die and bearing.Cooling system are considering this situation and avoid it happened.
3.Double-layer dies: This design increase the efficiency of pellet making,reduce clients cost.
4.Bearing: High precision, high speed, low noise, long life
5.Unique automatic lubricating system: Which lubricate the bearing, dies and rollers ,increase the produce efficiency and reduce energy consumption.It can work continuous 24 hours.

Working Principle

The motor drives the gear box to drive the spindle to drive the press roller to rotate. The gear box is a customized special gear box designed by the manufacturer for the Tony pellet machine, which has higher service life, lower maintenance rate and higher accuracy.
Product Parameter

Model	Power(KW)	Capacity(T/H)	Size(MM)	Weight(T)
TYJ551-II	90-110	1-2	2364*1550*1705	5.5
TYJ551-III	132	2-2.5	2364*1551*1705	5.5
TYJ760-III	160/185/200	2.5-3.5	2564*1750*2150	9
TYJ860-III	220-250	3-5	2664*1950*2150	13.5

Raw material requirements and molding effects
Raw material: wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree),bamboo shavings, rice hust, seeds shells, peanut shells, wheat straw, corn stalk, cotton stalks, alfalfa grass,bagrass, palm fiber, waste paper, non-physical material
Size:<14mm (All the raw materials must be crushed into sawdust
Moisture: Generally, 10-15% is best for producing good quality wood pellet

Diameter(MM)	Density(t/m³)	Ash Content	Moisture	Combustion Rate	Thermal Efficiency	Calorific Value
4-12	1.1-1.3	≤2%	≤8%	≥98%	≥81%	3500-5000Kcal

Main uses of pellets
Domestic heating and living energy: high fuel efficiency, easy storage
Biomass industrial boiler: as the main fuel for industrial boilers, it replaces coal and solves environmental pollution
Power generation: can be used as a fuel for thermal power generation
