Fully Automatic PE/PP/PVC/ABS/HDPE Thick Sheet/Plate/Board Extrusion/Extruding Production Line Making Machine

Product Description

Product Description
Product Description

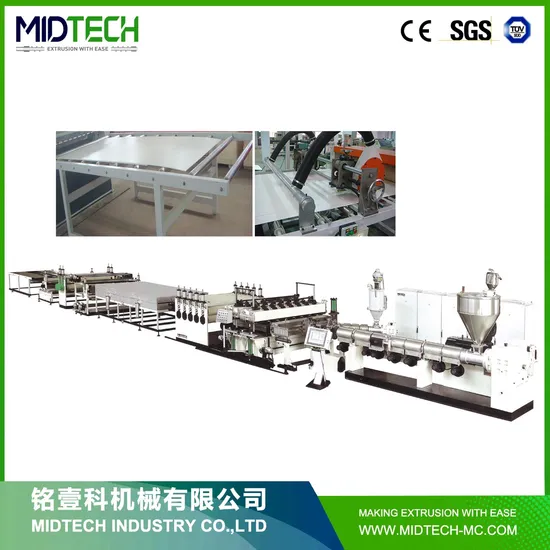

PVC thick plate production line
Hard PVC thick plate (3mm-30mm): The product has excellent chemical stability, corrosion resistance, hardness, high strength, anti-ultraviolet (anti-aging), fire-retardant (with self-extinguishing), insulation performance Reliable, smooth surface, smooth, non-absorbent, non-deformation, easy processing, etc., is a good thermoforming material, can replace part of the stainless steel and other corrosion-resistant synthetic materials, is widely used in chemical, oil, electroplating, water purification equipment , Environmental protection equipment, mining, pharmaceutical electronics, communications, anti-corrosion containers, electrical equipment shield, light boxes, advertising and other industries.
PP, PE thick plate production line products are resistant to impact, corrosion resistance, high heat resistance, non-toxic and tasteless, smooth surface appearance, low density, light weight, easy processing, good dimensional stability, rigidity, good heat resistance Will produce gas.
Applications: circuit board and metal surface treatment tank tank, circuit board wet processing equipment, plant exhaust system equipment, waste water and other environmental protection system equipment, semiconductor industry-related equipment, but also to fill, flame retardant, modified, the surface can be Embossed, frosted. Processing range: thickness 1-30mm width of 3000mm or less.
Product Parameters
Main features:
1.PLC control, good HMI, easy operatoin
2.automatic stacker, saving labour
Main technical :
Main parameter for PVC Imitation Marble Board Making Machine Production Line Manufacturing plant

No	Item	80/156	92/188
1	Applicable Thickness range	2-6mm
2	Size of PVC marble sheet	1220x2440 or 1220x2800mm
3	Weight of one PVC marble sheet	19-25kg/piece
4	Extruder model	80/156 conical twin screw extruder	92/188 conical twin screw extruder
5	Main Motor power	75kw	90kw
6	Output capacity	500-550pcs/24h about 10 ton/24h	800-8500pcs/24h about 15 ton/24h
7	Length of production line	30x3x3.5m	33x3x3.5m

Product Details
