1ly-1440 Poly Disc Plough/Soil Cultivating

Product Description

Product Description

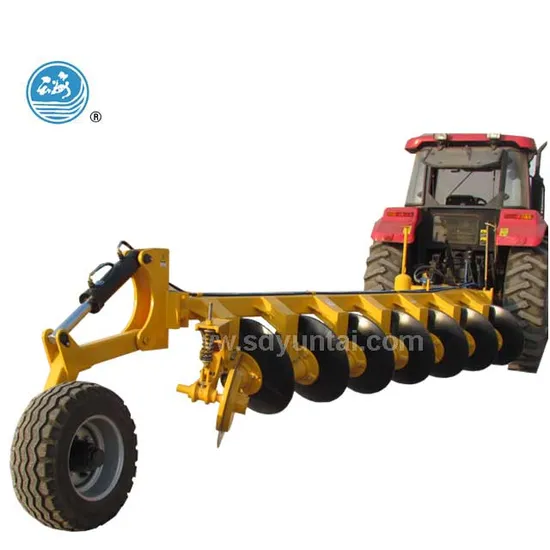

POLY DISC PLOUGH
This plow is mounted on the tractor, suitable for plowing paddy field and dry cultivated field, especially suitable for plowing paddy field, high-yield green fertilizer fields and plowing filed with rice or wheat stubble. This plow is with good working performance, good cutting soil performance. it can meet the technical requirements of agricultural production, and it is easy to operate and adjust.

Model	1LY-1200	1LY-1440	1LY-1400	1LY-1600	1LY-1650	1LY-1900
Working depth(mm)	140	140	160	160	180	180
Working width(mm)	1200	1440	1400	1600	1650	1900
Number of discs	5	6	5	6	6	7
Diameter of disc (mm)	560	560	610	610	660	660
Thickness of disc (mm)	5	5	5	5	5	5
Type of Linkage	Type I	Type I	Type II	Type II	Type II	Type II
Matched tractor(hp)	30-35	45-50	50-60	60-70	70-80	80-100
Weight (kg)	265	295	350	360	565	580

Detailed Photos
Packaging & Shipping
Standard Package
Company Profile
Shandong Yuntai Machinery Co.,Ltd., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading exporter of agricultural machinery and accessories.
YUNTAI company produce 20,000 sets tractor implements and 1,500,000 pcs of accessories annually and have its owe R & D team and strong production capacity.
YUNTAI company produce agricultural machinery and accessories matched with 18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting, transporting and plant protection machinery. Main equipments are disk plow, disc harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts and so on.
YUNTAI company have advanced production lines of machining, welding, punching, forging, sand blasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the United States, Germany, France, Australia,Asia, Africa,etc.
YUNTAI company is in Qihe Economic Development Zone, Dezhou city, Shandong Province. It is near to Jinan airport and Jinan railway station , From Jinan air port and Jinan west train station only takes 30 minutes by car.
