Zx7550c Small Drilling and Milling Machine
| US$3,000.00-3,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550C
Structure
Desktop
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
800*240mm
Table Travel
400*210*300mm
Max.Drilling Dia
50mm
Max.Tapping Dia
M16
Max.Boring Dia
120mm
Spindle Travel
120mm
Main Motor
1.5kw
N.W/G.W
700/850kg
Dimensions
1280*1100*2080mm
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84596190
Production Capacity
200 PCS/Month
Product Description

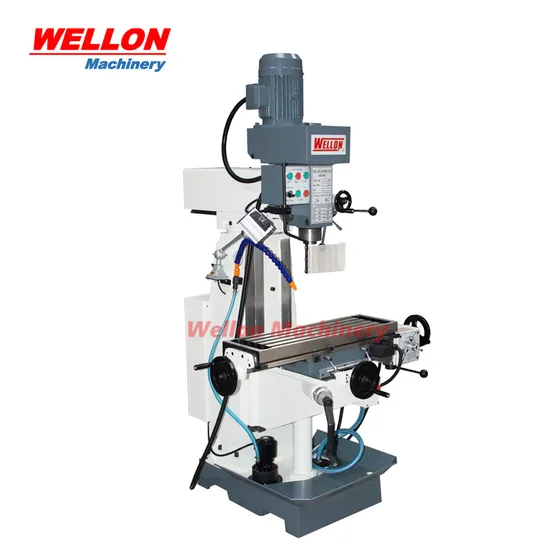

Product Description:Small vertical milling and drilling machine ZX7550C
Performence Features:
1. Use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With gear driven spindle
4. Head swivels into the horizontal level on both sided.
5. Easy activation of manual micro-feed for the spindle quill Technical parameter:
| Model | ZX7550C |
| Table size (mm) | 800×240 |
| Table travel (mm) | 400×210x300 |
| Max.drilling dia (mm) | 50 |
| Max.horizontal milling dia (mm) | 100 |
| Max.vertical milling dia (mm) | 25 |
| Max.boring dia (mm) | 120 |
| Max.tapping dia | M16 |
| Distance.spindle to table surface (mm) | 50-350 |
| Spindle speeds range (r.p.m) | 115-1750(V) |
| Spindle travel | 120 |
| Overall dimensions (mm) | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5 |
| N.W/G.W (Kg) | 700/850 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories:
| Y axis power feed motor |
| Z axis power feed motor |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
