12psb Diesel Injector Testing Machine Inject Pump Test Bench

Product Description

Product Description

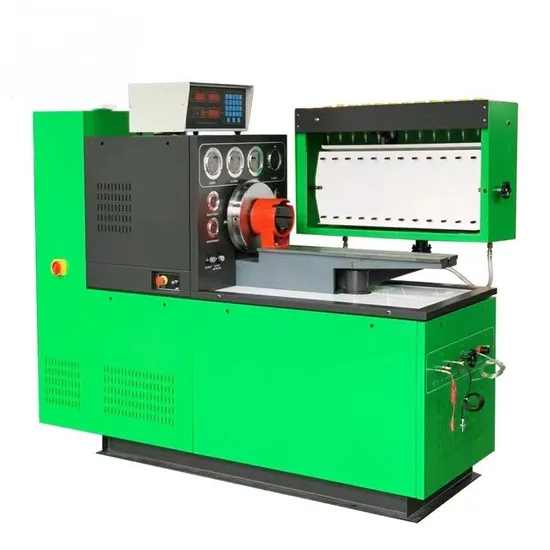

NANTAI Stand for adjusting the fuel pump 12PSB
Fuel injection pump stand 12PSDW for adjustment of high pressure fuel pumps of diesel engines. The engine power of the stand is 15kW, it is designed for adjusting engines with no more than 12 sections. The stand allows you to adjust both imported and Russianin-line and distribution high-pressure fuel pumps. The basic package of the stand includes an oil station integrated into the bodyof the stand (unlike the 12PSB stand, which is not equipped with an oil station). On stands with an oil station, it ispossible toadjust the injection pump with a circulating lubrication system. Stand manufacturer: "NANTAI AUTOMOTIVE TECHNOLOGY Co., Ltd".
Functions Testing and adjustment of in-line high-pressure fuel pumps with up to12sections, aswellasdistributiontypeinjection pumps by monitoring the following parameters and characteristics: 1.value and uniformity of fuel supply by sections (productivity of pumpingsections); 2.high-pressure fuel pump shaft rotation frequency at the moment the regulator starts to operate; 3.high-pressure fuelpump shaft rotation frequency at the moment of fuel supply cut-off; 4.pressure of opening of delivery valves; 5.the angle of thestart of injection and the end of fuel supply. 6.Uniformity of fuel supply by sections of injection pump; 7.Measurement of fuel supply angles by HPFP sections; 8.Checking theoperational characteristics of the high pressure fuel pump speed controller; 9.Testing characteristics of injection pump ofdistributive type;
10.Supercharge corrector testing; 11.Measurement of the amount of excess volume of high pressure fuel pump ofdistribution type; 12.DC voltage source (12/24V); 13.Checking the internal pressure of the fuel injection pump of the distributivetype at different speeds of rotation
14.High-pressure fuel pump test for tightness; 15.Testing high pressure fuel pump (pump),including the pump.
Characteristics 1. Stationary type, electric drive 2. Number of simultaneously tested sections of fuel injection pump - 12 pcs 3. Playback range:drive shaft rotation speed - 0........4000 min 4. The direction of rotation of the drive - left/ right 5. Electric motor powerconsumption, kW - 15 kW 6. Torque:- 1050-4000 min 15 kW 100.0-35.0 Nm 7. Programmable number of measurement cycles (in incrementsof 1) - 10-1000 8. The volume of the test fluid is 50 liters 9. The capacity of measuring beakers is 45 and 150 +/- 0,25 ml 10.ACpower supply: 11. Voltage, V - 380 12. Number of serviced personnel, person - 1 13. Overall dimensions in the package (L x W x H),mm - 2100 x 1100 x 1700 14. Gross weight, kg - 800 15. Net weight, kg - 750

Adjustable cylinders	12 or 8
Output power(Kw)	7.5/11/15/18.5/22kw
RPM	0-4000
Rpm pre-set	√
Temperature control system	√
Positive pressure system	√
Negative pressure system	√
Air supply	√
DC power supply	√
internal pressure of VE pump	√
Oil return of VE pump	√
Capability with pump typ	All in- line/ rotary pump

Packaking
Company Profile NANTAI AUTOMOTIVE TECHNOLOGY CO.,LTD. is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in the world, available for traditional diesel fuel injection pump test bench, high pressure common Rail system test bench, and various kinds of fuel electronic controller pumps test system. Also available the nozzle spare parts and special assemble and disassemble tools of the different pumps. The company's research and development capabilities are rich, and it can design and develop the new products based on the user's demands. The company has strict internal management and established a complete and reliable quality assurance system, and rewards the ISO9001-2000 CERTIFICATE and CE CERTIFICATE.
