Vertical Processing Machine CNC Lathe Machine with 3 Axis 4 Axis Vdls1000

Vertical Processing Machine CNC Lathe Machine with 3 Axis 4 Axis Vdls1000

US$30,000.00
1-4 Pieces
US$25,000.00
5+ Pieces

Basic Info.

Model NO.
VDLS1000
Process Usage
Metal-Forming CNC Machine Tools
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month

Product Description

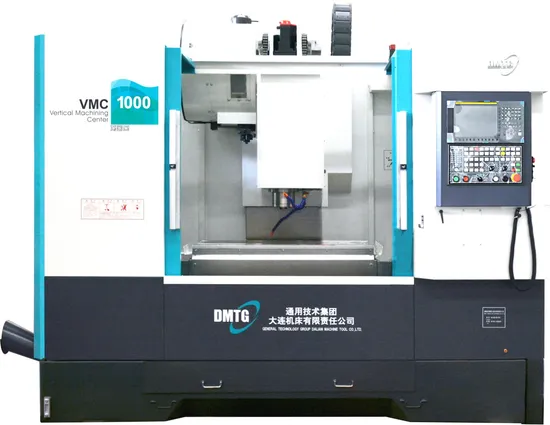

Vertical Processing Machine CNC Lathe Machine With 3 Axis 4 Axis VDLS1000
TABLE Worktable size mm 1120*560
T-Slot (Quantity*Width*Distance) mm 5*18*100
Max load of worktable kg 750
TRAVEL X/Y/Z axis travel mm 1040/580/620
X/Y/Z axis guideway type mm Linear guideway
Distance from spindle center to column mm 629
Distance from spindle nose to table mm 125~745
FEED RATE Rapid traverse of X/Y/Z axis m/min 36/36/30
Cutting feed rate mm/min 0~10000
SPINDLE Max spindle speed r/min 12000
Spindle taper No.40 (7:24)
ATC system Tool magazine capacity 24T/Arm
Tool shank type BT40
Max tool weight kg 8
Max tool diameter (w/o adjacent tools) mm 24T: φ78/155
Max tool length mm 300
Time of tool change (T-T) s 24T: 2.7
ACCURACY X/Y/Z axis positioning accuracy mm 0.016/0.008/0.008
X/Y/Z axis repeatability accuracy mm 0.006/0.005/0.005
CONTROL SYSTEM Controller GSK/SIEMENS/FANUC
