High Speed Fully Automatic Paper Core Cutting Machine
| US$27,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
JT-SL-2000
Paper Core Usage
Instrument Package
Gumming Type
Double Side
Layers of Roll Paper
9 - 16
Reelpipe Speed
12 - 18m/minute
Wall Thickness of Paper Tube
10 - 15mm
Certification
CE
Condition
New
After-sales Service
Yes
Tube Length
60-1500mm
Power Input
1.5 Kw
Control Mode
Automatic
Cutting Blade
Round Knife
Speed
20-120 Minute
Electric Motor
1.5 Kw
Tube Diameter
50-120 mm
PLC Controller
Dvp-F232
Pneumatical Part
Sanzheng
Unloading System
Automatic
Transport Package
Standard Exporting Package
Specification
CE
Trademark
JOTAMACHINERY
Origin
Ruian, Zhejiang, China
HS Code
84411000
Production Capacity
300sets/Year
Product Description

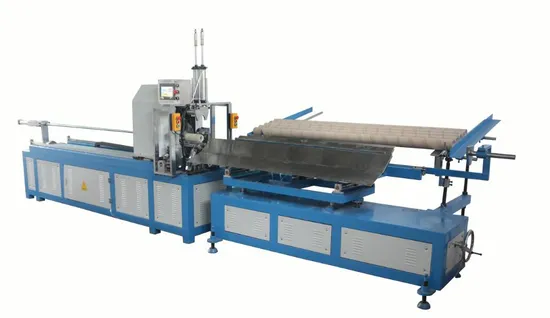

High Speed Fully Automatic Paper Core Cutting Machine Full automatic paper core cutter with loading stand, cutter, and unloading conveyor...Semi automatic paper core cutter only have cutting machine.
| Jumbo Tube length | 2500mm |
| Paper Tube Inner Dia | 20-200mm |
| Paper Tube Thickness | 4-20mm |
| Cutting Length | 10-2500mm |
| Cutting Speed | 60 cuts/min |
| Turret Movement Speed | 1.8m/min |
| Working Pressure | 0.6Mpa |
| Voltage | 380V 3Phase 50Hz |
| Power | 3Kw |
| Cutting Mode | Paper tube turn; knives and axes do not turn |
| Operator | 1 person |
| Mould | 2 sets |
| Uploading/Unloading | Hand control |
| Dimension | Main Body: 4400mm*1000mm*2100mm Core Feeder: 40000mm*900mm*1200mm |
| Weight | 1800kgs |
| Machine adopts Siemens PLC and Tocuh Screen control system, all the parameters are displayed on the touch screen, and it runs automatically. |
| It adopts Yaskawa frequency inverter to control. |
| It adopts 2 sets Yaskawa servo motor(Japan), one servo motor(0.85kw) to control cutter blade, the other servo motor(1kw) is moved, it control machine head. |
| It adopts 2 sets Yaskawa servo driver, one servo driver to control (1kw) to control cutter blade, the other servo driver(1kw) is moved, it control machine head. |
| It adopts double round blades to cutter. |
| It adopts 2 pieces ABBA mobile screw(Taiwan) to separate control cutter and machine head. |
| It adopts 2 sets Hiwin move the slider and track(Taiwan) to separate control cutter and machine head. |
| It adopts Hugong Signal element, Delixi Electrical components and Zhejiang Xingchen Pneumatic Components. |
| Paper tube clamping adopts automatic chucks. |
