Roller Type Veneer Dryer Hot Press Type Wood Veneer Machine Price

Product Description

Hot press type wood veneer machine price roller type veneer dryer for plywood making
Product Description

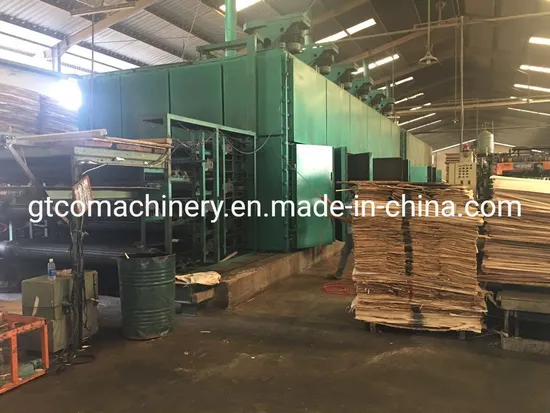

Wood Veneer Dryer Machine for plywood/veneer Factory
This machine is main machine for plywood production,it's used for peeled veneer drying.
It includes mesh, roller and mesh & roller type, can be customized according to your requirements.
It can dry veneers of various thickness and moisture contents. Any wood spices can be dried in this machine.
It's high efficiency, saving energy and improving the veneer quality.
The working layers quantity can be designed according to client's requirement or Drying capacity!.
New technology and advanced PLC controlling system!
Product Parameters

Name and Model	GTDM1333-10+3	GTDM1332-13+3	GTDM1343-15+2
Working width	2800mm	3400mm	3500mm
Working layers	3	2	4
Length of heating section	20000mm	13×2000mm=26000mm	15×2000=30000
Length of cooling section	6000mm	3×2000=6000mm	2×2000=4000
Total power	155.7kw	128.5kw	280.2kw
Transport motor	7.5kw×3=22.5kw	11kw×2=22kw	18.5kw×2=37kw
Heating motor	11kw×10=110kw	7.5kw×13=97.5kw	15kw×15=225kw
Cooling motor	4kw×3+3kw×3=21kw	3kw×3=9kw	4kw×2+4kw×2=16kw
Output power	2.2kw×1=2.2kw	2.2kw×1=2.2kw	2.2kw×1=2.2kw
Veneer transportation speed	1.5~15 m/min	1.5~15m/min	1.5~15m/min
Saturated steam pressure	0.6~1.0 Mpa	0.6~1.0 Mpa	0.6~1.0 Mpa
Drying temperature	150~170 ºC	150~170 ºC/170-190 ºC	170-190 ºC
Steam consumption	3300 kg/h	3000 kg/h	3600kg/h
Veneer density	~620 kg/m³	~620 kg/m³	~590 kg/m³
Available veneer thickness	1.5~3.5mm	1.5~3.5mm	1.5~4.5 mm
Veneer initial moisture content	~80%	~80%	50-60 %
Veneer final moisture content	6 ±2%	6 ±2%	10-20 %
Load ratio	85%	85%	85%
Drying capacity	2.6~2.9m³/h	2.5~2.8m³/h	~6.7 m³/h
Roller spacing	333mm	333mm	333mm
Overall dimension(L*W*H)	45620×5150×4150mm	43820×5050×2800mm	52720×5850×4720mm
Total weight	~79000kg	~73000	~132000
