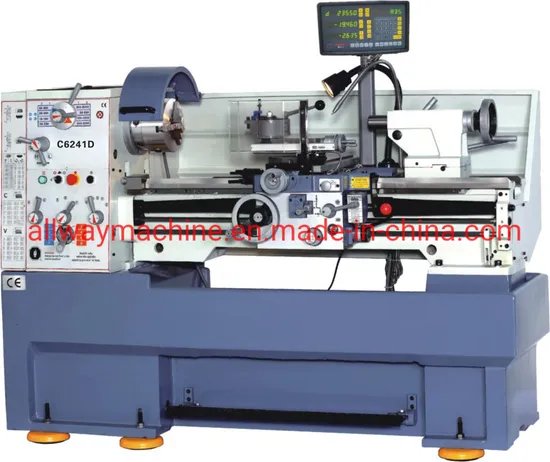

Light Duty Precision Gear Lathe
Basic Info.
Model NO.
C6241D, C6241V
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
360mm
Trademark
Allway
Origin
China
HS Code
84581900
Production Capacity
2000PCS/Year
Product Description
Features :Super voice frequency heated bed ways.
Hardened and grounded gears in the headstock.
With 2 precision D degree taper roller bearings on the spindle.
Integrated deluxe cast iron floor stand.
Tolerance test certificate, test flow chart included.
Product main technical specifications:
| SPECIFICATIONS | Units | C6241D | C6241V |
| Swing over bed | mm | 410(16") | 410(16") |
| Swing over cross slide | mm | 255(10") | 255(10") |
| Swing over gap | mm | 580(23") | 580(23") |
| Gap length | mm | 190(7-1/2") | 190(7-1/2 ") |
| Distance between centers | mm | 1000(40") /1500(60'' ) | 1000(40")/1500(60'') |
| Center height | mm | 205(8'') | 205(8'') |
| Bed width | mm | 250(10'') | 250(10'') |
| Spindle nose type | - | D1-6 | D1-6 |
| Spindle bore | mm | 52(2") | 52(2 ") |
| Spindle bore taper | - | MT6 | MT6 |
| Spindle speed range | rpm | L:30-550 H: 550-3000 | 45-1800 |
| Spindle speed steps | - | Stepless | 16 |
| Top tool post travel | mm | 140(5-1/2 '') | 140(5-1/2'') |
| Cross slide travel | mm | 210(8-1/4 '') | 210(8-1/4'') |
| Tool size | mm | 20*20(13/16'') | 20*20(13/16'') |
| Lead screw threads | T.P.I. | 4 | 4 |
| Longitudinal feeds range | mm/r | 0.05-1.7(0.002 " -0.067 " /rev) | 0.05-1.7(0.002 " -0.067 ") |
| Cross feeds range | mm/r | 0.025-0.85(0.001 " -0.0335 " /rev) | 0.025-0.85(0.001 " -0.0335 ") |
| Kinds of metric threads | kinds | 39 | 39 |
| Range of metric threads | mm | 0.2-14 | 0.2-14 |
| Kinds of inch threads | kinds | 45 | 45 |
| Range of inch threads | T.P.I. | 2-72 | 2-72 |
| Kinds of diametral threads | kinds | 21 | 21 |
| Range of diametral threads | D.P. | 8-44 | 8-44 |
| Kinds of threads module | kinds | 18 | 18 |
| Range of threads module | M.P. | 0.3-3.5 | 0.3-3.5 |
| Tailstock quill diameter | mm | 50(2'' ) | 50(2'' ) |
| Tailstock quill taper | - | MT4 | MT4 |
| Tailstock quill travel | mm | 120(4-3/4 ") | 120(4-3/4 ") |
| Cross adjustment | mm | ±13(±1/2 ") | ±13(±1/2 ") |
| Main motor power | kw | 2.2/3.3(3/4.5HP) | 2.2/3.3(3/4.5HP) |
