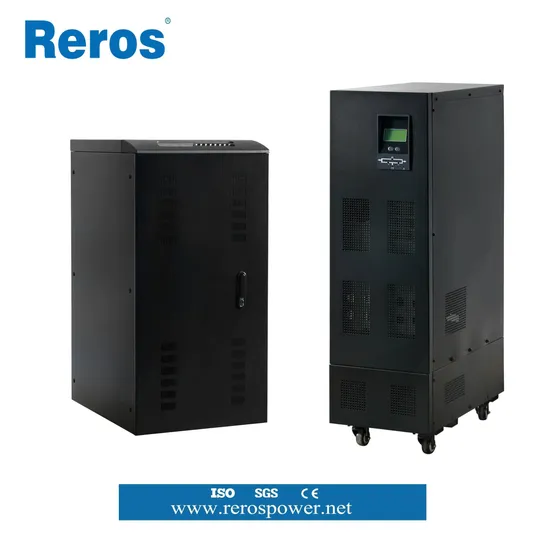

Three Phase in Single out 3/1 3b6-50kVA Online UPS Emergency Power Supply Isolation Transformer Inside

Product Description

Main feature
1.IGBT inverter and output isolation transformer
2.Online double conversion
3.Wide input voltage range
4.RS232/RS485 communication port
5.SNMP adapter/dry contact(optional)
6.High reliability and performance
7.External battery pack (optional)
8.Maintenance switch
Application
1.Data center
2.Industry
3.Commercial facility
4.Telecom system
5.Medical/bank system
6.Precision instrument
Specification

Model	3B6K	3B10K	15kVA	3B20K	3B30K	3B40K	3B 50K
Capacity	6kVA	10kVA	15kVA	20kVA	30kVA	40kVA	50kVA
Input features
Input voltage(Vac)	380±25%
Frequency(HZ)	45~66 Automatically select synchronization range according to grid frequency
Phase	3φ4W+PE
Battery voltage(Vdc)	192	192/384			384
Output features
Power factor	0.8/0.9
Voltage(V)	220/230/240±1%,Isolation transformer output
Frequency(HZ)	50/60±0.5%(Free oscillation)
Transfer Time(ms)	0
Waveform	Sine Wave,THD<3%
Overload	125% load keep 10min,150% load keep 60s
Crest factor	>3:1
Others
Output ways	Terminal Block
Parallel function	Yes(optional)					No
Manual maintenance bypass	with no transfer time bypass maintenance switch
Backup time	Battery supply life can be configured freely
Battery management	Automatic timing/floating conversion, has battery self-testing function, automatic alarm and judge when battery abnormal
Efficiency(AC mode @ full loads)	≥90%
Communication function	RS232 / RS485 interface, support for power monitor software
SNMP(optional)	Can be network monitored by SNMP adapter
Noise (dB)	<60(within 1 meter)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection	Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection
Working Temperature(ºC)	0~40
Humidity	0~95%,No Condensing
Size(D×W×H) (mm)	596*305*890			700*405*955			1040*560*1410
				(20K:192Vdc)/
				740*560*1200
Weight(KG)	130kg	160kg	200kg	220kg	280kg	340kg	520kg

Note:
1, Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
FAQ
1)What is your minimum order quantity?
A: For common specification, there is no minimum order quantity, and one piece could also be supplied. The difference is just the price and schedule. If your request is some special, we need to calculate it accordingly.
2)Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept.
3)What is the Terms of Payment?
A: T/T, L/C, D/P, D/A, Western Union, Paypal and MoneyGram (for Small-amount payment).
4)Can you offer Form A or Form E or C/O?
A: Yes, it's no problem, we could apply it from our local government.
5)What's the warranty condition for your UPS?
A: 1 year warranty after the shipment of boarding date, and 1% single phase of UPS amount by free Spare Parts shipped together with each order shipment;
6)How is your delivery time?
A: It depends on your order quantity and specification, usually about 7~20days, and it won't cost more than 35days
7)What are the advantages of your company?
A: Reros has about 30 years manufacturing experience, and more than 20 years exporting experience. We promise your quality and service all the time. Adequate inventory, and supply guarantee for the subsequent renewal of supply, providing different solutions.
