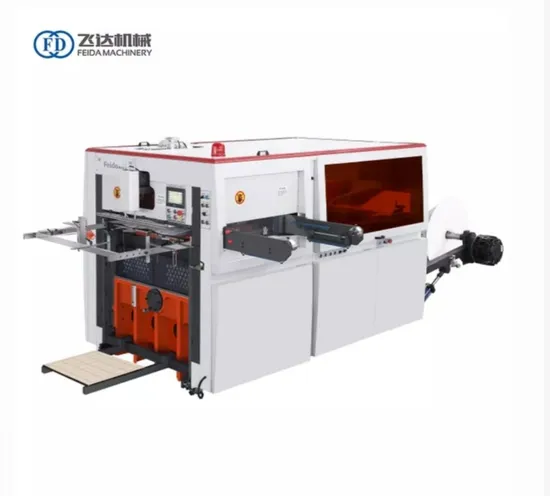

High Quality Roll Paper Cup Lid Die Punching Forming Machine Price

Product Description

Technical Specification

Model	FD970x550
Max cutting area	940mmx510mm
Cutting precision	±0.20mm
Paper gram weight	120-600g/cbm
Production capacity	90-180times/min
Air pressure requirement	0.5Mpa
Air pressure consumption	0.25m³/min
Max cutting pressure	150T
Weight	6.5T
Max roller diameter	1600mm
Total power	12KW
Dimension	4500x2200x1800mm

Introduction
FD series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it's widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.
Main structure
1. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.
Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.
2. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
3. Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.
Die cutting plate: 65Mn steel plate heating treatment, high hardness and flatness.
Die cutting knife plate and plate frame can be take out so that it can save plate-changing time.
FAQ
Q1. What Kinds Of products Can Be Made On Feida die cutting Machine ?
Feida roll die cutting machine is suitable for creasing,die cutting,embossing paper cup,paper plate,paper box,square box,etc paper packaging

Q2. What Is The Packing Way Of The Machine for delivery?
Usual , flexible packaging with iron underframe

Q3. What Is The Machine Delivery Time ?
As Generally speaking, 20--40 days shippment after confirming layout.

Q4. How About The Machine Guarantee?
One year. During this period, any parts damaged caused by machineself, the seller will repair/replace the spare parts for free. After one year, the seller will supply the spare parts to buyers as the cost. The machine service is all around the machine life.

Q5. What About The Machine Installation And Training ?
If customer request, we will send our technician to install and train operation.Buyer bears 100USD allowance per day,tickets,accomadation,food
Q6.What Is The Terms Of Payment ?
By 100%T/T , 30% of deposits should be paid in advanced , then 70% of balance should be paid before shippment . or L/C at sight , both are ok .
Welcome to contact with us freely or send me the inquiry if you are interested in our machine.
