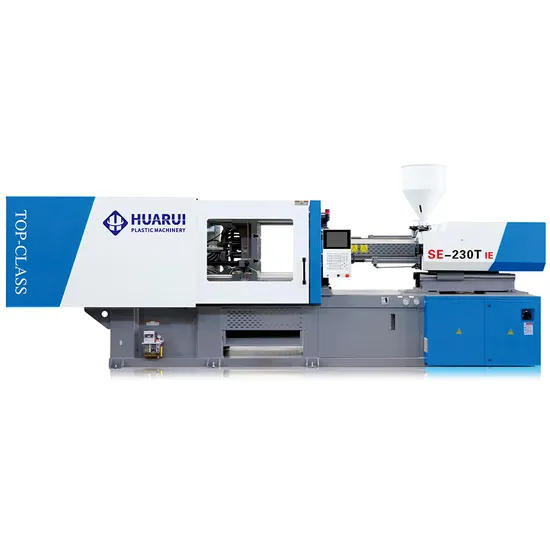

Horizontal Small Automatic Servo Energy Saving Plastic Fittings Injection Moulding Molding Machine

Horizontal Small Automatic Servo Energy Saving Plastic Fittings Injection Moulding Molding Machine

US$38,500.00-42,500.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-230T/IE
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
200/350cm³/Sec
Weight
7800kg
Motor Power
46kw
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
4.6*1.2*1.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Horizontal Small Automatic Servo Energy Saving Plastic Fittings Injection Moulding Molding Machine
Product Parameters
Se-230T/IE Plastic Injection Molding Machine Information
Item Unit AA A
Screw diameter mm 40 45
Theoretical shot volume cm³ 283 358
Shot weight (PS) g 257 326
Shot weight (PS) oz 9.1 11.5
Length/Diameter ratio L/D 22 22
Injection pressure Bar 2531 2000
Injection rate cm³/sec 200/350
Max.screw speed rpm 300
Clamping force KN 2300
Max.daylight mm 810*760
Open stroke mm 520
Space Between Tie-bars mm 570*520
Min mould dimension mm 220
Mould thickness range mm 570
Ejector force KN 80
Ejector stroke mm 150
No.of ejector pins unit 9
Motor power KW 46
System pressure MPa 175
Heater input power KW 14
Oil filling capacity L 200
Machine size M 5.8*1.4*2.2
Net weight KG 7800

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
