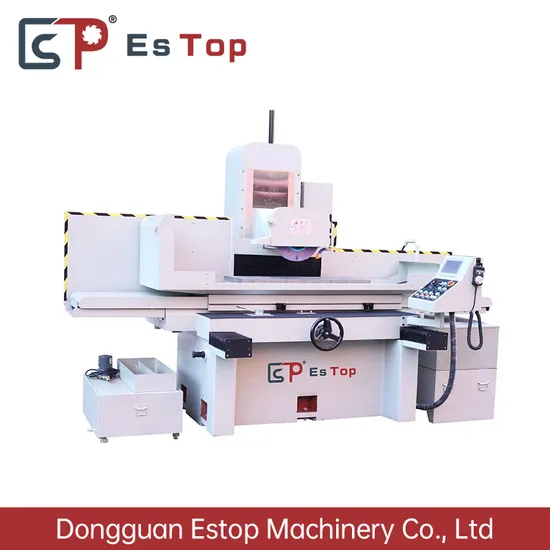

Estop Excellent Mold Plate CNC Surface Grinding Machine Eta30120nc Surface Grinder

Product Description

Product Description
Estop Excellent Mold Plate CNC Surface Grinding Machine Eta30120nc Surface Grinder
Saddle Type Surface Grinding:
These series, various in size, are the most powerful saddle type surface grinding machines that show high efficiency as well as high precision for large parts and molds.
-High precision spindle and spindle motor with lower vibration and noise
-Durable and suitable for precision grinding
-Intensive research planning and manuacture by high-elasticity structure
-Excellent durability and heavy grinding available
-4-point suspension mode cross travel guide way
Features and applications:

1. The guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy.
	2. The spindle independent design to add one more bearing, increase a bearing model, both heavy rough 1, the guide rail are affixed with advanced imported wear-resistant adhesive, manual precision scraping to ensure lasting accuracy. grinding can also be finished.
3. The use of high-quality motor, V3 level vibration, low noise, small vibration, reliable quality.
4. The main castings of the machine tool are made of advanced cast iron. After annealing treatment, vibration aging treatment and removal of the internal stress of the castings, the stability of the castings is greatly improved and it is not easy to deform.

Product Parameters:

Main item	Saddle Type Surface Grinding machine	Unit	ETA-30100	ETA-30120
Worktable	Electromagnet table size(x*y)	mm	1000x300	1200x300
	Left and right Xaxis travel	mm	1200	1400
	Front/back Y axis travel	mm	360
	Max center of wheel to table	mm	475
	Worktable Maximum loading copacity	kg	600
	Table t-slot specification	mm*n	14x1
	Worktable feed speed	m/min	5-30
In front and back Feed	Front/back Automatic feed	mm	0.1-8
	Front/back(50HZ/60HZ) Fast moving speed	mm/min	990/1190
Grinding wheel	Grinding wheel size max	mm	Φ350xΦ127x40
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450/1740
Z axis Up and down	Up/down Fast moving speed	mm/min	230
Motor	Spindle motor	HP*P	7.5x4
	Up and down, The Z axis motor	w	750
	Hydraulic motor	HP*P	2x6
	Cooling motor	w	90
	In front and back servo, The Y axis motor	w	1000
Machine Size	Machine Tool Profile size L*W*H	mm	3200x1900x2260	3600x1900x2260
	Weight	kg	≈2700	≈2800
