Wholesale Z3032X10 Radial Drilling Machine Hydraulic Mechanica Radial Drill Manufacturers

Product Description

Product Description

Specifications			Z3032x10
Max.drilling diameter (mm)			32
Distance from end of spindle to worktable (mm)			220-980
Distance from spindle center to column busbar (mm)			260-1000
Spindle travel (mm)			120
Spinlde taper			MT4
Spindle speed range (rpm)			108-1000(6-Step)
Rotation angle of rocker arm ( °)			360
Main motor power (kw)			2.2
Lift motor power (kw)			0.75
Weight (kg)			700
overall dimension(mm)			1600x700x2150

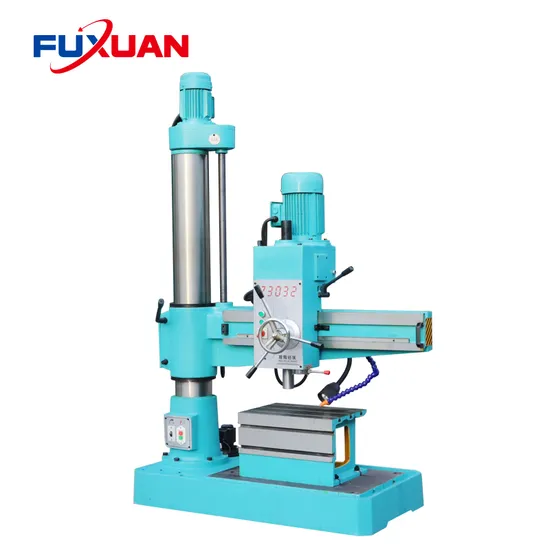

Z3032x10 radial drilling machine can also be used as cross drills. The spindle box can move
left and right on the rocker arm and rotate ±180° with the rocker arm column. The rocker arm
can also be raised and lowered along the outer column to adapt to processing workpieces of
different heights. The radial drilling machine has a wide processing range and can be used to
drill various screw holes, threaded holes and oil holes of large workpieces. Suitable for boilers,
bridges, rolling stock, shipbuilding, machinery industry, and other industries. The radial drilling
machine is mainly composed of a base, an inner column, an outer column, a rocker arm, a
headstock and a worktable.
FAQ
Q1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact
model .You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2: Where is our factory located? How can I visit there?
A : Our factory is located in No. 988, Xingteng East Road, Economic and Technological Development Zone,
Tengzhou City, Shandong Province, China.
Q3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
Q4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Before we delivery the
machine, we will send machine photo and video for you to confirm.
Q5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
Q6.the warranty?
The warranty is one year. If the machine have any problem due to our reason, we will send spare parts for
you within 48 hours.
