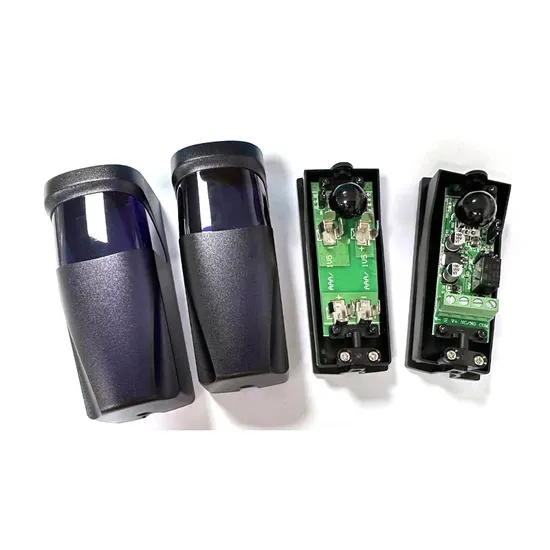

Wireless Photocell Sensor AC/DC 12V-24V Outdoor Automatic Door Photocell Infrared Photocell Sensors Support Batteries

Product Description

Product Name	Battery Infrared Sensor
Function	Widely used for automatic garage door opener gates windows for safety
Package	White box, yellow box, color box optional
Working voltage	Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DC
Working current	Transmitter < 85µA, Receiver < 30mA (24V DC)
Photocell wavelength	940nm
Angle of emission	≤±5°
Receiving range	10-20m (range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc)
Relay contact loading capacity	1A/30VDC
Size	100*40*35mm
Operating temperature	-10ºC to +70ºC

Wireless Photocell sensor AC/DC 12V-24V outdoor automatic door photocell infrared photocell sensors support batteries
Beam sensor photocell infrared sensor features: 1.Small size design, easy installation. 2.universal photocell infrared sensor for automatic door opener 3.IP55, can be installed outside. 4.an-glare, can work under temperature -10ºC to +70ºC 5.Safe, beautiful, economic, comfortable.
Product Description
Product type
infrared sensor, photocell, detector
Spec.
1, More than 200 kinds models; OEM & ODM welcomed

2, CE & RoHS & ISO Compliant

3, Patent moulds for enclosure

4, Markets covered Europe, South and North America, Asia etc.

5, Offer samples to test.
Trade terms

1). Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery

2). Samples can be delivered in 3-5 days

3). Shipping freight are quoted under your requests

4). Discounts are offered based on order quantities

5). FOB price are quoted under inquiry
