FINCM CNC Tube Plate Drilling Machine for Boilers Heat Exchangers

Product Description

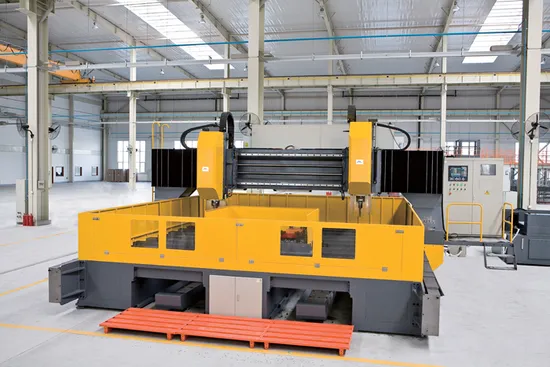

PHM4040C/2 FINCM CHINA Tube Sheet Flange CNC Hydraulic High-Speed Plate Drilling Machine
Production Description:
PHM4040C/2 Gantry Movable CNC Plate Drilling Machine
Machine Purpose:
The machine is a gantry mobile CNC drilling machine, which is mainly used for drilling pipe plate and flange parts with diameter less than 80, thread milling, hole groove, chamfering and milling.
Machine Features:
The machine frame body and cross beam are in welded fabricated structure, after enough aging heat treatment, with very good accuracy. The work table, transversal sliding table and ram all are made from cast iron.
Two sides'dual servo driving system at X axis assures the gantry's parallel accurate movement, and the good squareness of Y axis and X axis.

The worktable adopts fixed form, high-quality cast iron and advanced casting process, with large bearing capacity. High rigidity bearing seat, bearing adopts back-to-back installation method, special bearing with high precision screw.
The drilling power box of this machine tool belongs to rigid precision spindle type, which adopts Taiwan BT50 internal cooling spindle. The spindle cone hole has a purging device, and can use cemented carbide internal cooling drill, with high precision. The spindle is driven by high-power spindle servo motor through synchronous belt, the reduction ratio is 2.0, the spindle speed is 30 ~ 3000r / min, and the speed range is wide.
Main technical specifications:

Item	Name	Value
Maximum Plate Size	L x W	4000×4000 mm
	Maximum Thickness	250 mm
Work Table	T Slot Width	28 mm(standard)
	Loading Weight	3ton/m2
Drilling Spindle	Maximum Drilling Diameter	φ80 mm
	Drilling spindle's Rod Length vs. Hole diameter	≤10
	RPM	30~3000 r/min
	Spindle Tape	BT50
	Spindle motor power	2*37kW
	Maximum Torque n≤750r/min	470Nm
	Distance from Spindle bottom surface to the worktable	280~780 mm (adjustable as per material thickness)
Gantry Longitudinal Movement (X Axis)	Max. Travel	4000 mm
	Movement speed along X axis	0~16m/min
	Servo motor power of X axis	2×3.3kW
Spindle Transversal Movement (Y Axis)	Max. Travel	4000mm
	Movement speed along Y axis	0~16m/min
	Servo motor power of X axis	2*2.7kW
Spindle Feeding Movement (Z Axis)	Max. Travel	500 mm
	Feeding speed of Z axis	0~10m/min
	Servo motor power of Z axis	2*4.3kW
Positioning accuracy	X axis,Y axis	0.064mm/full travel
Repeatable positioning accuracy	X axis,Y axis	0.04mm/full travel
Hydraulic system	Hydraulic pump pressure/Flow rate	15MPa /22L/min
	Hydraulic pump motor power	5.5 kW
Pneumatic system	Compressed air pressure	0.5 MPa
Scrap removal and Cooling system	Scrap removal tpe	Plate chain
	Scrap removal Nos.	2
	Scrap removal speed	1m/min
	Motor Power	2×0.75kW
	Cooling way	Inner cooling + Outside cooling
	Max. Pressure	2MPa
	Max. Flow rate	2*60L/min
Electronic system	CNC control system	Siemens 828D
	CNC Axis Nos.	6
	Total power	About 110kW
Overall Dimension	L×W×H	About 8.8×7.7×4.1m
Machine weight		About 42t

Key outsourced components list:

No.	Name	Brand	Country
1	Roller linear guide rail	HIWIN/HTPM	China Taiwan/China Mainland
2	CNC control system	Siemens	Germany
3	Feeding servo motor and servo driver	Siemens	Germany
4	Precise spindle	Spintech/Kenturn	China Taiwan
5	Hydraulic valve	Yuken/Justmark	Japan/China Taiwan
6	Oil pump	Justmark	China Taiwan
7	Automatic lubricating system	Herg	Japan
8	Button, Indicator, low voltage electronic components	ABB	Germany

Note: The above is our fixed supplier. It's subject to be replaced by same quality components of other brand if the above supplier can't supply the components due to any special matter.
Free Accessories list:

No.	Name	Size	Qty.
1	Optical edge finder		1 piece
2	Inner hexagon wrench		1 set
3	Tool holder and pull stud	Φ40-BT50	2 pcs
4	Tool holder and pull stud	Φ20-BT50	1 piece
5	Spare paints	--	2 kegs

Work Environment:
1).Power supply: 3 phase 5 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75%
