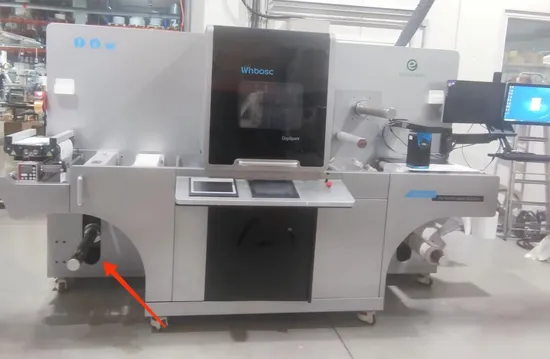

Ecoospark Digital Roll Label Cold Foiling and Varnish Printing Machine

Product Description

Ecoospark Digital Roll Label Cold Foiling and Varnish Printing Machine
For Cold Foil Stamping,3D Embossing,Spot Varnishing,Braille Printing
EcooSpark is the Digital Roll Label Varnishing and Foiling machine, for digital spot varnishing, 3D crystal bright, partial glazing, cold foil stamping, embossing, etc., without the need for plate making. It can reduce costs and instantly realize unique visual effects of printing. This is a digital post-press equipment that creates new profit points for users, and is a digital efficiency-enhancing printing machine.
Applications: Wine Labels, Cosmetic Labels, Luxury labels ,Medical labels,Washi Tapes, Stickers ,Pouches ,Braille Printing and so on. Features:
Sturdy structure (double wall panel design)
Thick and thin materials, stability, mature platform
High stability
Good material applicability
No heating required
LED UV+water cooling roller
Suitable for ordinary cold foil
High quality-details, sharp edges:
Less heat, higher stability
Patented technology-better detail performance
Multi-process completed at one time
Customizable
Specification

Model EcooSpark
Printing Technology	UV Piezo DoD-inkjet
Resolution	up to 1440*360 dpi
Printing speed	10m/min - 60m/min(depend on polymer layer thickness)
Variable Image system	PDF, optimized PDF, Optional barcode system
Supported image standards	PDF,PDF/VT,TIFF, JPEG, BMP & other data base files
Substrates	Offset, Digital, Plastics, Laminated and coated substrates
Printing image width	288mm (extendable to 450 mm)
Polymer	WB-DS-Clear Polymer
Polymer layer thickness	From 10 up to 180 microns
Ink curing	Inter UV-LED Pre-curing/Full curing by UV-LED
Unwinder diameter	Max. 700mm, Core 76mm
Rewinder diameter	Max. 700mm, Core 76mm
Substrates thickness	30-400 micro
Substrates width	330mm
Press with Foil station dimensions (LxHxW)	3500mmx1900mmx1800mm
Operating environment	Temperature: 15ºC-30ºC, Humidity: 40%-80% relative humidity
Electrical requirements	Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz Current: Avg. 25 Amps in Production
Weight	2800kg

Quality Control
Professional control department which is responsible for all the machines.
Full checking list including mechanical and electrical detection on the machine.
Strict standard for registration and over 24 hours non-stop running on each machine.
Follow the policy of 'One person responsible for one machine' ,'Claim responsibility if machine has assemble problem'.
Service
All of our technicians have over 10-20 years experience.
Rich experience in installation, repairing and maintenance overseas.
After-sales staff Whatsapp/Wechat on line 24/7.
Guarantee to provide after-sales service for any machine for whole using life.
