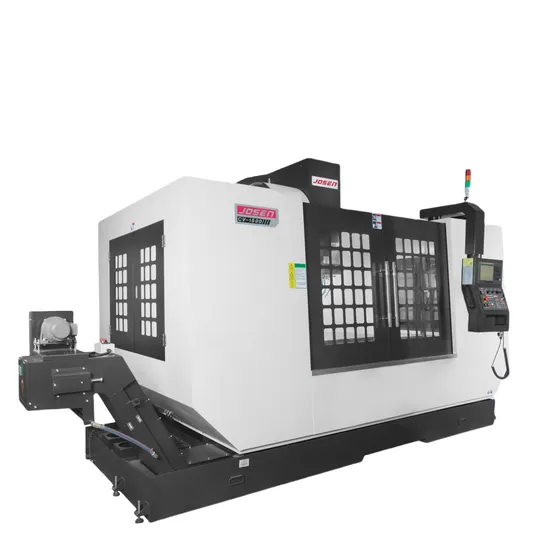

VMC1580 Advanced Technology Cost-Effective 3 Axis Metal CNC Machine Milling Cutting CNC Machine Tool Vertical Machining Center
Product Description
Basic Info
Number Name Number Name

1	FANUC 0I - MF CNC Controller (Japan)	10	Chip tray and water tank
2	Full - cover shield	11	Transformer
3	Automatic lubrication system	12	Spindle air - curtain dust - proof system
4	Anchor bolts and pads	13	Mechanical, electrical, and operation manuals
5	Toolbox	14	Rigid tapping
6	Work lamp	15	Electrical cabinet heat - cycle system
7	Warning light	16	Machine - cleaning water gun
8	M30 automatic power - off system	17	Three - axis guide - rail telescopic shield
9	Hand - held air - blowing gun for chip removal	18	24 - arm - type tool magazine

Product Specification
Description/Machine Model Unit CV - 1580

Travel
X - axis travel	mm	1520
Y - axis travel	mm	800
Z - axis travel	mm	700
Distance from spindle nose to worktable surface	mm	155 - 855
Worktable
Worktable size (X * Y)	mm	1650 * 800
T - slot size (width * number of slots * distance)	mm	18 * 5 * 100
Maximum worktable load capacity	kg	1400
Spindle
Spindle motor power (continuous / 30 minutes)	kW	15 / 18.5
Spindle speed	r/min	10 - 8000
Spindle inner taper		BT50
Axes
X - axis motor power	kW	βis40 / 2000 (3.0 kW)
Y - axis motor power	kW	βis40 / 2000 (3.0 kW)
Z - axis motor power	kW	βis40B / 2000 (3.0 kW)
X - axis screw rod / ball screw		050 * C3 grade / MSR45L - S2 - 2Z - C3 ball screw /
Y - axis screw rod / ball screw		050 * C3 grade / MSR45L - S2 - 2Z - C3 ball screw /
Z - axis screw rod / ball screw		050 * C3 grade / MSR55S - S2 - 2Z - C3 ball screw /
Feed rate
Rapid feed rate (X / Y / Z)	m/min	20000 / 20000 / 20000
Maximum cutting feed rate	m/min	1 - 10000
Tool change system (optional)		set
Tool magazine capacity (standard / optional)		24 / 30
Tool magazine type		Arm - type
Tool clamping form		MAS - P50 - 1 (45°)
Maximum diameter of adjacent tool	mm	0105
Maximum diameter of empty - space tool	mm	0200
Maximum tool length	mm	350
Maximum tool weight	kg	15
Machine precision
Three - axis laser positioning accuracy (VDI3441 statistical method) Environmental requirements: Temperature change of machine environment within 12 hours before detection shall not exceed 4 °C, and temperature change during detection shall not exceed 2 °C
Positioning accuracy (full stroke)	mm	0.015
Repeat positioning accuracy (full stroke)	mm	0.008
System
Controller		FANUC 01 - MF
Pneumatic system
Water tank capacity	liter	350
Air pressure demand	kg/cm²	6
Electricity
Power specification		AC380 ± 10%, 3 - phase, 60Hz / 50Hz
Power demand	KVA	50
Others
Floor space (length * width)	mm	5350 * 4800 (including foot - plate pressure station)
Machine height (maximum)	mm	3350

Machine Features
The machine body, column, spindle box and other key parts are made of Meehanna castings, which have a stable organization and maintain the quality permanently. The castings have been analyzed by finite element analysis computer calculation, reasonable structural strength and reinforcement matching, to provide high rigidity of the machine. The casting structure adopts one-piece molding technology, box structure, processing of large-scale pentahedral machining machine, a clamping processing is completed, the machine tool has a high rigidity, high strength, excellent geometric precision. And can ensure the long-term stability and high precision of the machine tool. In order to prevent deformation after machining, the castings are thoroughly annealed, which is favorable to eliminate internal stress.
The base is wide, the column is triangular box structure, heavy load full support design, solid structure, can ensure the heavy load capacity during machining.
The symmetrical design of the left and right sides of the column balances the weight of both sides, which can maintain the stability of the machine accuracy.
The spindle box is reinforced with ribs, and the ratio of the contact length between the spindle box and column is appropriate to provide stable support for the spindle.
The X/Y/Z axes adopt linear guideways with high rigidity, low noise, and low friction, which can be used for rapid traverse and obtain the best rounding accuracy.
Rapid displacement X/Y/Z: 20/20/20m/min.
The 3-axis servo motor adopts absolute value detection, so it is not necessary to do home return every time when machining, which can improve the efficiency, and at the same time, because there is no limit switch, it can reduce the failure rate and increase the reliability of the machine.
The 3-axis servo motor and screw are directly connected by precision coupling, which can eliminate the connection gap and improve the transmission efficiency.
The cutting fluid capacity is up to 350L, which can quickly discharge the cutting heat. The water tank is designed as a double tank and placed inside the machine to save space.
The spindle adopts precision angled ball bearings for high speed and high precision, and the standard speed is up to 8000 rpm. The standard machine adopts high horsepower spindle motor, and high torque motor can be selected when matching with higher torque output.
The front of the spindle adopts labyrinth design and air curtain protection function, which effectively prevents cutting fluid from entering the spindle and damaging the spindle bearings.
The electrical box adopts side-mounted design to save space and maximize the use of limited space.
Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
