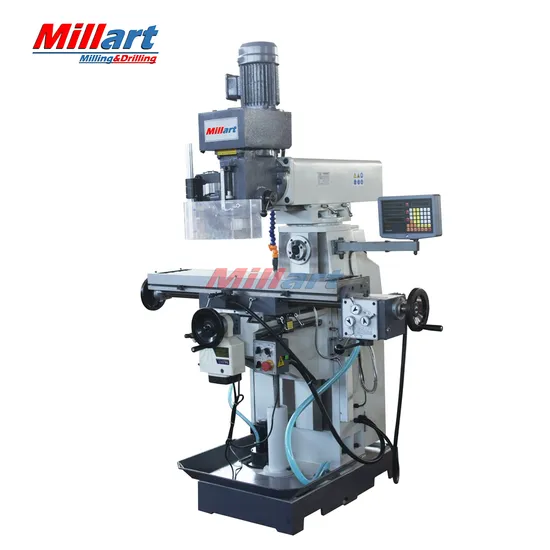

Zx7550z Metal Gear Head Vertical and Horizontal Drilling Milling Machine
| US$1,800.00-3,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550Z
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1000X240 mm
Table Travel
600X210X300 mm
Spindle Taper
Mt4
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459290000
Production Capacity
200 PCS/Month
Product Description
ZX7550Z Metal Gear Head Vertical and Horizontal Drilling MillingFeature:
Milling head with auto feeding
Use as milling machines and drill press
Easily shift able gear drive ensures power transmission without losses
With gear spindle drive
Head swivels into the horizontal level on both sided
Easy activation of manual micro-feed for the spindle quill
Technical parameter:
| Model | ZX7550Z |
| Table size (mm) | 1000×240 |
| Table travel (mm) | 600×210x300 |
| Max.drilling dia (mm) | 50 |
| Max.horizontal milling dia (mm) | 100 |
| Max.vertical milling dia (mm) | 25 |
| Max.boring dia (mm) | 120 |
| Max.tapping dia | M16 |
| Spindle feeding rate (mm) | 0.08/0.15/0.25 |
| Distance.spindle to table surface (mm) | 50-350 |
| Spindle speeds range (r.p.m) | 8 steps 60-1500 (V) 9 steps 60-1350(H) |
| Spindle travel | 120 |
| Spindle taper | MT4/ISO40 |
| Overall dimensions (mm) | 1280×1100×2080 |
| Motor (Kw) | 0.85/1.5(V) 2.2(H) |
| N.W/G.W (Kg) | 900/1000 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories
| Y axis power feed motor |
| Z axis power feed motor |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
