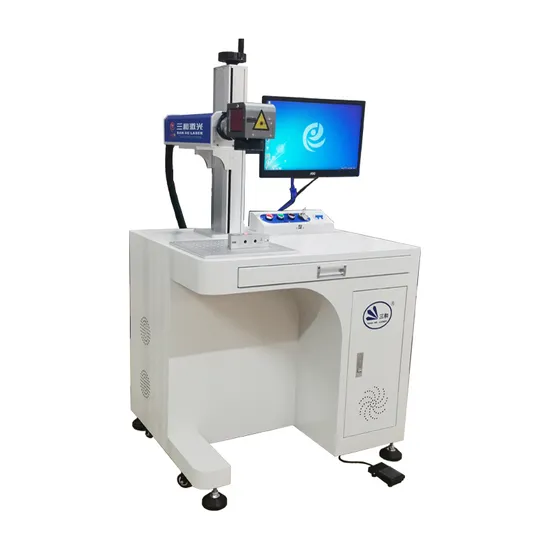

20W 30W 50W 100W Fiber Laser Marking Engraving Machine Equipped with Rotary

Product Description

Hot Sale 10W 20W 30W 50W fiber laser marking machine portable or desktop type
(Marking Area:110*110mm,175*175mm ,300*300mm optional)
20W Fiber Laser Marking Machine Performance Applications:
Can do marking for both on metal materials and some non-metallic materials, mainly marked in areas for smoothness, finesse demanding, such as electronic products, metal ware, watches, jewelry , IC, plastic buttons and other graphic surface.

Electronic Component	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus and Meter	Panel Signs, Precision equipment, etc
Instrument	Panel Sings, Nameplates, Medical Instruments
Hardware Tools	Knives, tools, measuring tools, cutting tools, etc.,
Automobile Parts	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts	Bearing, Gears, Standard Parts, Motors,etc
Daily Necessities	Handcrafts, Zipper, Key Holder, Sanitary Wares, etc
Jewelry	Jewelry, Rings, Gold & Silver Parts
Food Drinking Parking	Plastic Packing, etc

Technical Parameters

Model type	3HE-MF20	3HE-MF30	3HE-MF50
Laser power	20W	30W	50W
Length of laser weave	1064nm	1064nm	1064nm
Marking scope(mm)	150x150	175*175-200x200	150*150-300*300
Mark depth	0.4mm	0.6mm	1.0mm
Repeat frequency	20-200KHz	20-200KHz	20-200KHz
Min line width	0.02mm	0.02mm	0.02mm
Min character	0.1mm	0.1mm	0.1mm
Repeat precision	±0.002mm	±0.002mm	±0.002mm
Power consume	0.8KW	0.8KW	1kw
Power supply	220V(±10%)/50Hz	220V(±10%)/50Hz	220V(±10%)/50Hz
Operating temperature	10-35°C	10-35°C	10-35°C

PS: (20w are recommended for the products surface shallow markings
the laser 30w,50w for deep marking, engraving and cutting on all kinds of metals)
Introduction
Fiber laser marking machine uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system. The optical fiber laser marker
features high electro optic conversion efficiency, air cooling, small size, high quality output
beam, high reliability, long service life and energy saving.
Main Features
1.Laser power output is stable , and light spot quality is good .
2.Quick marking and cutting speed at 2-3 times that of conventional machines .
3.There is no restriction in operation systems . It is convenient in operation , with fully closed light paths , so it is stable , reliable and free in maintenance with ultra-long service life up to more than 100000 hours .
4.No pollution , no noise , and consumable materials , with power consumption at 5%-10% of consumption by traditional machines .
5.ultra high accuracy and fineness , with there solution up to 2540dpi .
FAQQ1.When the machine can't work well, what should I do? A:1. The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon.2. All our machines have two years' warranty, If there is any problems of machine parts under "normal use", new machine parts will be sent by air for free.3. Please rest assured that operation CD and manual will be offered along with machine, ensuring you can operate the machine easily. Q2.Are you factory or trading company? A:We are factory with 10 years experience has branch or offices in America.Thailand,Vietnam,Malaysia,Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service. Q3.Where is your facotry located in? How can I visit there? A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan, Guangdong, China.We can pick you up from Shenzhen airport to our factory,You are warmly welcome to visit us!!! Q4.How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
and we have CE,FDA, ISO9001,SGS certification.
Q5.What is the delivery time?
A:We have standard models in stock,will delivery within 5-7 working days.
For un-standard models, we will delivery within 10-15 working days.
Q6.How long can I expect to get the sample?
A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side. Q7. How can I get Machine's spare parts? A:There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport the parts.The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours.
